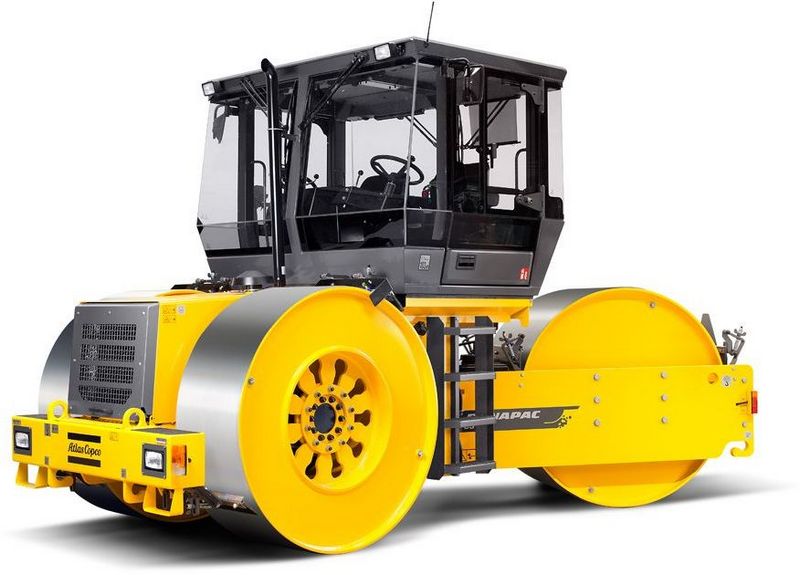

Dynapac CS1400N
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 188.19 in (4780 mm) |
| Overall Width | 7.06 ft in (2150 mm) |
| Height To Top Of Cab | 11.36 ft in (3460 mm) |
| Wheelbase | 114 in (2895.6 mm) |
| Ground Clearance | 13 in (330.2 mm) |
| Turning Radius - Inside | 11.65 ft in (3550 mm) |
| Turning Radius - Outside | 18.54 ft in (5650 mm) |
Engine
| Engine Make | Deutz |
| Engine Model | TD 3.6 L4 IIIB |
| Gross Power | 73.8 hp (55 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Water cooled turbo diesel |
Operational
| Operating Weight Rops | 23814 lb (10801.9 kg) |
| Oscillating Angle | 9 degrees |
| Operating Weight | 28665 lb (13002.3 kg) |
| Fuel Capacity | 29 gal (109.8 L) |
| Water Spray Tank Fluid Capacity | 140 gal (530 L) |
| Max Speed | 9 mph (14.5 km/h) |
| Steering Angle | 35 degrees |
Drum
| Drum Width | 82.7 in (2100 mm) |
| Drum Diameter | 59.1 in (1500 mm) |
| Static Linear Load | 280 lb/in (50.1 kg/cm) |
Brakes
| Parking Brake | Failsafe multidisc on all 3 drums |
| Service Brake | Hydrostatic in forward and reverse lever |
