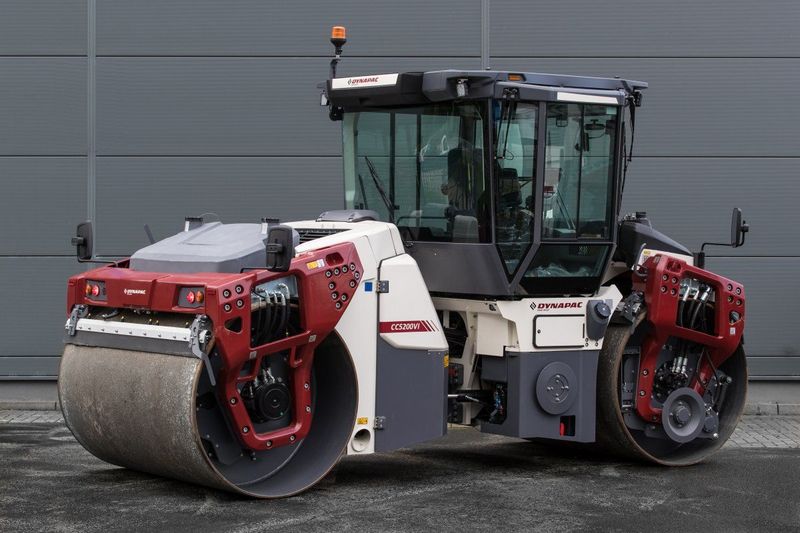

Dynapac CC5200
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 196.46 in (4990 mm) |
| Overall Width | 7.02 ft in (2138 mm) |
| Height To Top Of Cab | 9.81 ft in (2990 mm) |
| Wheelbase | 145.28 in (3690 mm) |
| Ground Clearance | 12.21 in (310 mm) |
| Gradeability | 40 % |
| Turning Radius - Outside | 19.92 ft in (6070 mm) |
| Curb Clearance | 34.06 in (865 mm) |
Engine
| Engine Make | Cummins |
| Engine Model | QSB 4.5 IIIB |
| Engine Type | Water cooled turbo Diesel |
| Gross Power | 130.1 hp (97 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Oscillating Angle | 17 degrees |
| Operating Weight | 27998.8 lb (12700 kg) |
| Fuel Capacity | 63.5 gal (240 L) |
| Water Spray Tank Fluid Capacity | 369.9 gal (1400 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Steering Angle | 32 degrees |
Drum
| Drum Thickness | 0.8 in (18 mm) |
| Drum Width | 76.8 in (1950 mm) |
| Drum Diameter | 51.2 in (1300 mm) |
| Static Linear Load | 162.4 lb/in (29 kg/cm) |
| Vibration Frequency 1 | 51 Hz |
| Nominal Amplitude - High | 0.1 in (0.8 mm) |
| Vibration Frequency 2 | 67 Hz |
| Nominal Amplitude - Low | 0.1 in (0.3 mm) |
| Centrifugal Force - High | 34620.6 lb (154 kN) |
| Centrifugal Force - Low | 22705.8 lb (101 kN) |
