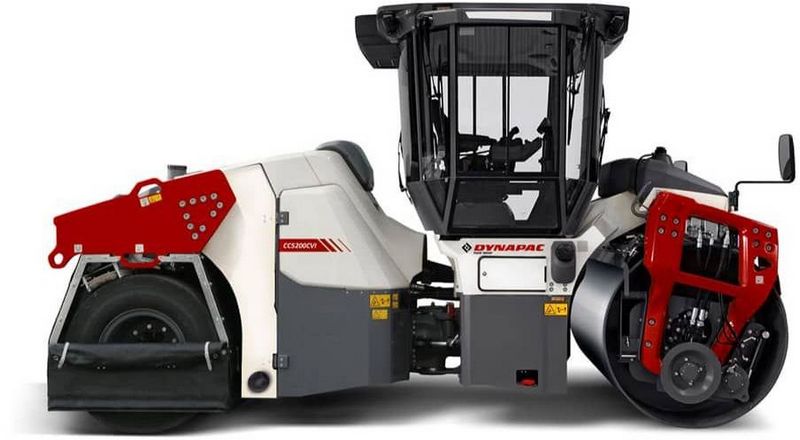

Dynapac CC4200C VI
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 197 in (5003.8 mm) |
| Overall Width | 6.25 ft in (1905 mm) |
| Height To Top Of Cab | 9.84 ft in (2997.2 mm) |
| Wheelbase | 146 in (3708.4 mm) |
| Ground Clearance | 12.2 in (309.88 mm) |
| Gradeability | 41 % |
| Turning Radius - Inside | 18.34 ft in (5588 mm) |
| Turning Radius - Outside | 23.84 ft in (7264.4 mm) |
| Curb Clearance | 32 in (812.8 mm) |
Engine
| Emissions Certification | Tier 4f |
| Engine Make | Cummins |
| Engine Model | QSF3.8 IV |
| Engine Type | Water cooled turbo diesel with After Cooler |
| Gross Power | 130.1 hp (97 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Def Tank Capacity | 4 gal (15.2 L) |
| Operating Weight Rops | 20700 lb (9389.4 kg) |
| Oscillating Angle | 7 degrees |
| Operating Weight | 24300 lb (11022.3 kg) |
| Fuel Capacity | 48 gal (181.7 L) |
| Engine Oil Capacity | 53 gal (200.7 L) |
| Water Spray System Fluid Capacity | 143 gal (541.4 L) |
| Max Speed | 7.5 mph (12.1 km/h) |
| Steering Angle | 32 degrees |
Drum
| Drum Thickness | 0.8 in (20.1 mm) |
| Drum Width | 66 in (1676.4 mm) |
| Drum Diameter | 51 in (1295.4 mm) |
| Static Linear Load | 167 lb/in (29.9 kg/cm) |
| Vibration Frequency 1 | 51 Hz |
| Nominal Amplitude - High | 0.1 in (0.8 mm) |
| Vibration Frequency 2 | 67 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 28780 lb (128.1 kN) |
| Centrifugal Force - Low | 18880 lb (84 kN) |
Tires
| Wheel Spacing | 5 in (127 mm) |
| Track Widths | 12.7 in (322.6 mm) |
| Wheel Track/Tire Overlap | 18.3 in (464.9 mm) |
Brakes
| Parking Brake | Failsafe multidisc brake in drum and wheel motors |
| Service Brake | Hydrostatic in forward and reverse lever |
