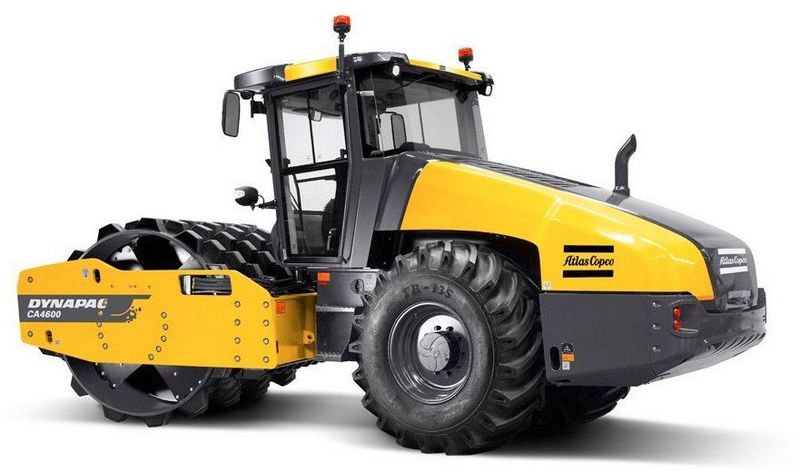

Dynapac CA4600D
Contents:
| Overall Length | 236 in (5994.4 mm) |
| Wheelbase | 122 in (3098.8 mm) |
| Ground Clearance | 18 in (457.2 mm) |
| Height With Out Rops | 7 ft in (2133.6 mm) |
| Height With Rops | 9.75 ft in (2971.8 mm) |
| Gradeability | 55 % |
| Overhang Front | 4 ft in (1219.2 mm) |
| Overhang Rear | 4 ft in (1219.2 mm) |
| Turning Radius - Inside | 11 ft in (3352.8 mm) |
| Turning Radius - Outside | 18 ft in (5486.4 mm) |
| Curb Clearance | 18 in (457.2 mm) |
| Engine Make | Deutz |
| Engine Model | TCD6,1L06 |
| Gross Power | 173 hp (129.1 kw) |
| Power Measured @ | 2200 rpm |
| Operating Weight Cabin | 30200 lb (13698.5 kg) |
| Operating Weight Rops | 29800 lb (13517.1 kg) |
| Operating Weight | 33500 lb (15195.4 kg) |
| Fuel Capacity | 19.1 gal (72 L) |
| Max Speed | 4.4 mph (7 km/h) |
| Tire Size | 23,1 x 26 AW |
| Drum Width | 84 in (2133.6 mm) |
| Drum Diameter | 60 in (1524 mm) |
| Pad Height | 4 in (101.6 mm) |
| Vibration Frequency 1 | 30 Hz |
| Pad Surface Area | 22.6 in2 (145.9 cm2) |
| Nominal Amplitude - High | 0.1 in (2.1 mm) |
| Vibration Frequency 2 | 30 Hz |
| Nominal Amplitude - Low | 0.1 in (1 mm) |
| Centrifugal Force - High | 60700 lb (270.1 kN) |
| Centrifugal Force - Low | 26980 lb (120.1 kN) |
