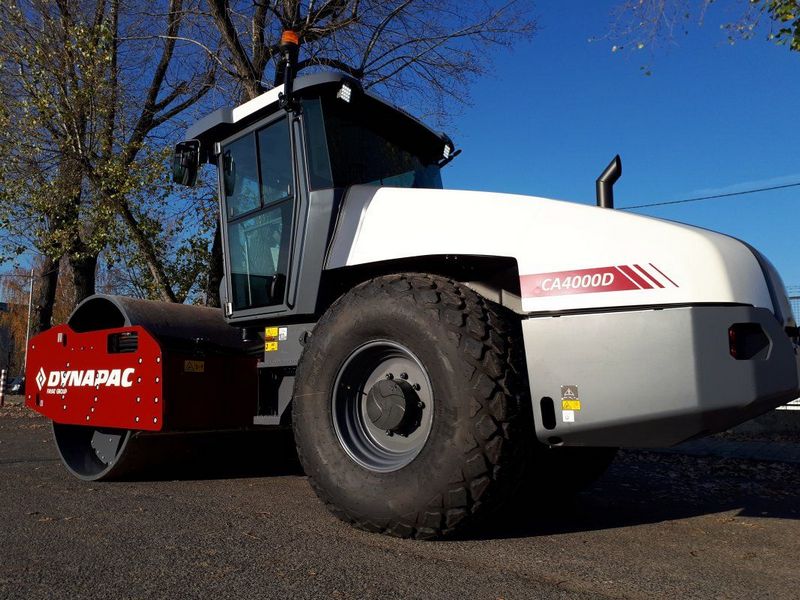

Dynapac CA4000D
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 235.83 in (5990 mm) |
| Wheelbase | 117.72 in (2990 mm) |
| Ground Clearance | 17.72 in (450 mm) |
| Height With Out Rops | 6.99 ft in (2130 mm) |
| Height With Rops | 9.45 ft in (2880 mm) |
| Gradeability | 57 % |
| Overhang Front | 0.28 ft in (85 mm) |
| Overhang Rear | 0.28 ft in (85 mm) |
| Turning Radius - Inside | 10.83 ft in (3300 mm) |
| Turning Radius - Outside | 18.38 ft in (5600 mm) |
| Curb Clearance | 17.72 in (450 mm) |
Engine
| Engine Make | Cummins |
| Engine Model | QSB4.5 |
| Engine Type | Water cooled turbo charged + Intercooler |
| Gross Power | 159.6 hp (119 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Rops | 28880.6 lb (13100 kg) |
| Operating Weight | 32848.9 lb (14900 kg) |
| Fuel Capacity | 71.9 gal (272 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Tire Size | 23.1 x 26 TR |
Drum
| Drum Thickness | 1.4 in (35 mm) |
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 59.9 in (1520 mm) |
| Static Linear Load | 229.6 lb/in (41 kg/cm) |
| Pad Height | 4.1 in (102 mm) |
| Nominal Amplitude - High | 0.1 in (2 mm) |
| Pad Surface Area | 22.7 in2 (146 cm2) |
| Nominal Amplitude - Low | 0.1 in (0.8 mm) |
| Centrifugal Force - High | 60698.5 lb (270 kN) |
| Centrifugal Force - Low | 26977.1 lb (120 kN) |
