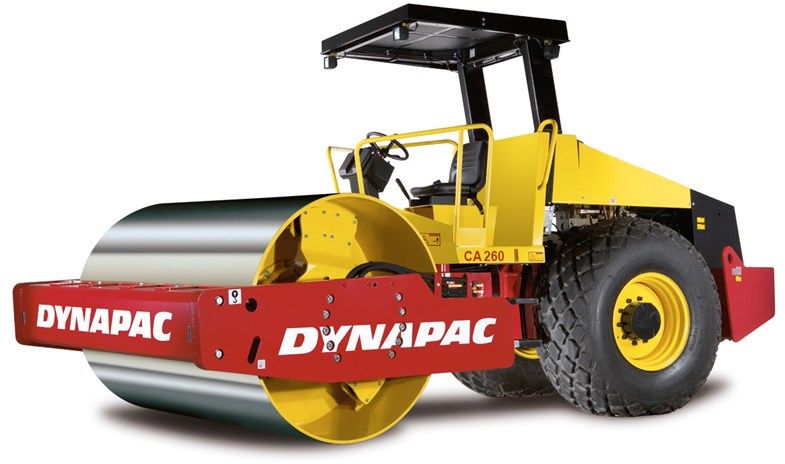

Dynapac CA260D
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 18.9 in (5758 mm) |
| Overall Width | 6.99 ft in (2130 mm) |
| Height To Top Of Cab | 9.69 ft in (2952 mm) |
| Wheelbase | 9.42 in (2870 mm) |
| Ground Clearance | 15.75 in (400 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB 6.7 |
| Gross Power | 150 hp (112 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | water cooled turbo diesel with after cooler |
Operational
| Operating Weight | 24912.3 lb (11300 kg) |
| Fuel Capacity | 84.6 gal (320 L) |
| Max Speed | 5.6 mph (9 km/h) |
| Tires *If Applicable | 23.1x26 |
Drum
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 60 in (1523 mm) |
| Static Linear Load | lb/in (29.1 kg/cm) |
| Vibration Frequency 1 | 33 Hz |
| Nominal Amplitude - High | 0.1 in (1.7 mm) |
| Nominal Amplitude - Low | 0.1 in (0.8 mm) |
| Centrifugal Force - High | 55303.1 lb (246 kN) |
| Centrifugal Force - Low | 26752.3 lb (119 kN) |
