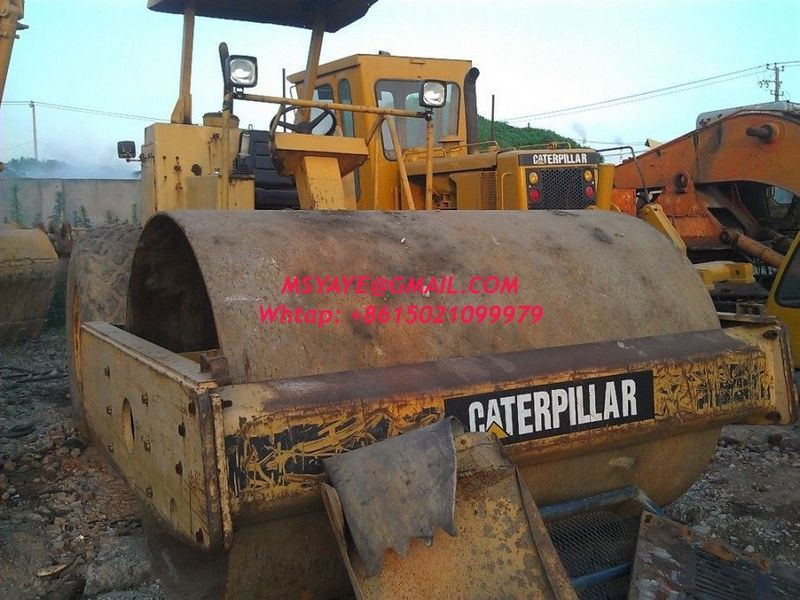

Caterpillar CS533C
Browse All Caterpillar or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 17.26 in (5258 mm) |
| Overall Width | 8 ft in (2438 mm) |
| Height To Top Of Cab | 8.24 ft in (2510 mm) |
| Wheelbase | 8.99 in (2740 mm) |
| Ground Clearance | 19.02 in (483 mm) |
Engine
| Engine Model | 3116T |
| Gross Power | 145 hp (108.2 kw) |
| Displacement | 402.8 cu in (6.6 L) |
Operational
| Operating Weight | 20716.9 lb (9397 kg) |
| Fuel Capacity | 58.2 gal (220 L) |
| Engine Oil Capacity | 5.3 gal (20 L) |
| Hydraulic System Fluid Capacity | 29.1 gal (110 L) |
| Max Speed | 8 mph (12.8 km/h) |
| Tires *If Applicable | 23.1X26-8 PLY |
Drum
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 96 in (2438 mm) |
| Vibration Frequency 1 | 30 Hz |
| Centrifugal Force - High | 24060 lb (107.1 kN) |
| Centrifugal Force - Low | 12030 lb (53.6 kN) |
