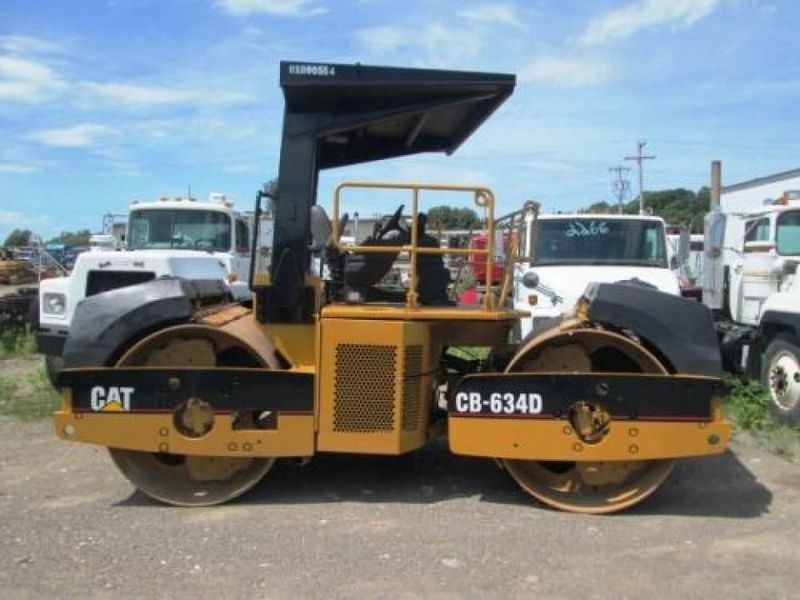

Caterpillar CB634D
Browse All Caterpillar or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 16.25 in (4953 mm) |
| Overall Width | 7.59 ft in (2311 mm) |
| Height To Top Of Cab | 10.22 ft in (3113 mm) |
| Wheelbase | 10.34 in (3150 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3116T |
| Gross Power | 144.9 hp (108 kw) |
| Net Power | 138.2 hp (103 kw) |
| Displacement | 402.8 cu in (6.6 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 28219.2 lb (12800 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 8.2 gal (31 L) |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Max Speed | 7.6 mph (12.2 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 105 amps |
Drum
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 51.2 in (1300 mm) |
| Static Linear Load | 426.8 lb/in (30 kg/cm) |
| Vibration Frequency 1 | 44 Hz |
| Nominal Amplitude - High | 0.1 in (1.1 mm) |
| Nominal Amplitude - Med High | 0.1 in (0.9 mm) |
| Nominal Amplitude - Med | 0.1 in (0.8 mm) |
| Nominal Amplitude - Med Low | 0.1 in (0.6 mm) |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 35744.7 lb (159 kN) |
| Centrifugal Force - Med High | 31023.7 lb (138 kN) |
| Centrifugal Force - Med | 24953.8 lb (111 kN) |
| Centrifugal Force - Med Low | 19108.8 lb (85 kN) |
| Centrifugal Force - Low | 13039 lb (58 kN) |
