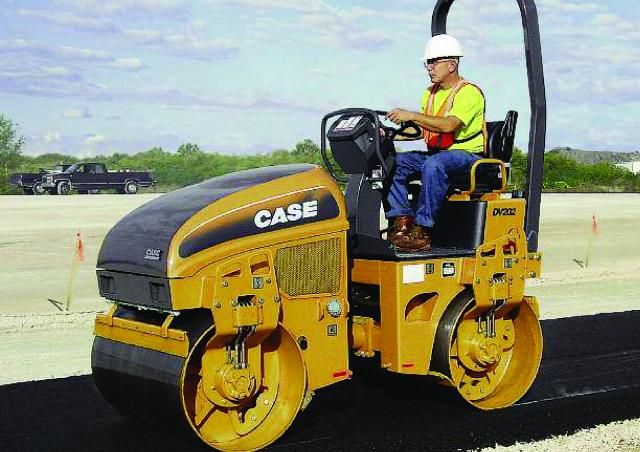

Case DV202
Browse All Case or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 8.67 in (2640 mm) |
| Overall Width | 4.24 ft in (1290 mm) |
| Height To Top Of Cab | 8.75 ft in (2680 mm) |
| Wheelbase | 5.63 in (1716 mm) |
| Ground Clearance | 12 in (310 mm) |
| Drum Diameter - Front | 2.43 ft in (740 mm) |
| Drum Diameter - Rear | 2.43 ft in (740 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | D2011 L2 Tier III certified |
| Net Power | 31 hp (23 kw) |
Operational
| Operating Weight | 5950 lb (2700 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Engine Oil Capacity | 1.7 gal (6.5 L) |
| Hydraulic System Fluid Capacity | 10 gal (38 L) |
| Max Speed | 8.5 mph (13.6 km/h) |
Drum
| Drum Width | 47.3 in (1200 mm) |
| Drum Diameter | 29 in (740 mm) |
| Static Linear Load | 63 lb/in (11.3 kg/cm) |
| Vibration Frequency 1 | 53 Hz |
| Nominal Amplitude - High | 0.1 in (0.5 mm) |
| Vibration Frequency 2 | 62 Hz |
| Nominal Amplitude - Low | 0.1 in (0.5 mm) |
| Centrifugal Force - High | 7159 lb (32.5 kN) |
| Centrifugal Force - Low | 5242 lb (23.8 kN) |
