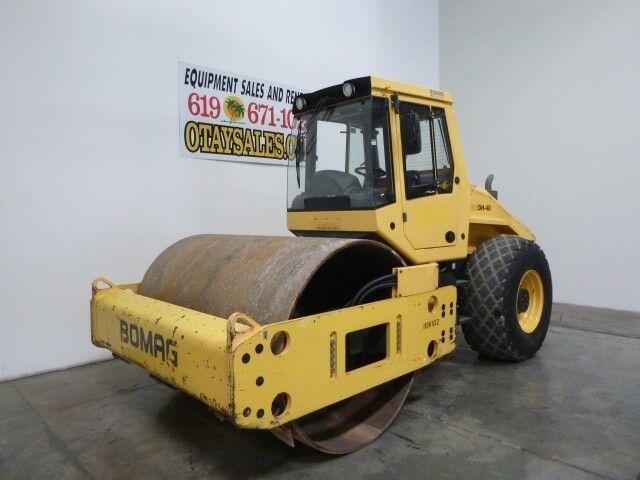

Bomag BW213DH40
Contents:
| Overall Length | 19.17 in (5840 mm) |
| Height To Top Of Cab | 9.76 ft in (2972 mm) |
| Wheelbase | 9.72 in (2960 mm) |
| Ground Clearance | 19.3 in (490 mm) |
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | QSB 4.5 |
| Gross Power | 160 hp (119.4 kw) |
| Power Measured @ | 2200 rpm |
| Operating Weight | 26540 lb (12038.4 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Tires *If Applicable | 23.1-26/12PR |
| Operating Voltage | 12 V |
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 59.1 in (1500 mm) |
| Static Linear Load | 183.2 lb/in (32.7 kg/cm) |
| Vibration Frequency 1 | 30 Hz |
| Nominal Amplitude - Med | 0.1 in (1.8 mm) |
| Vibration Frequency 2 | 36 Hz |
| Centrifugal Force - Med | 61822.5 lb (275 kN) |
