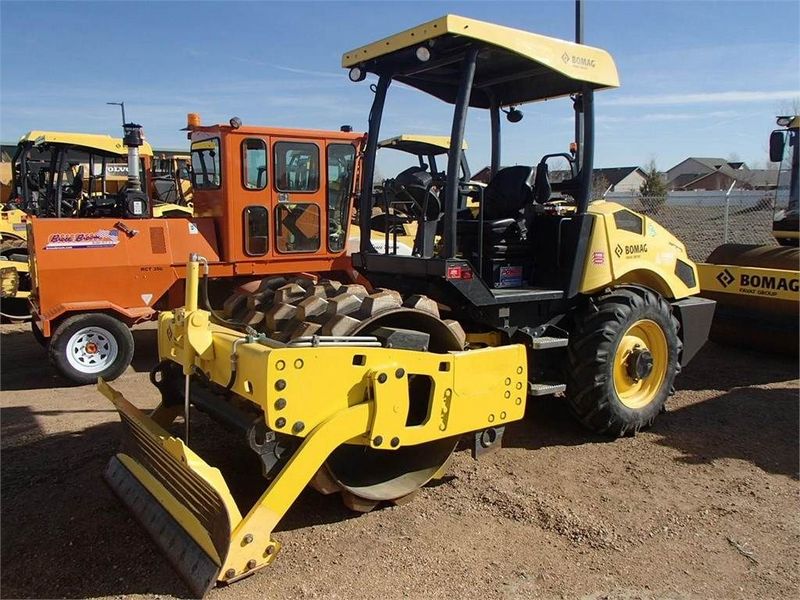

Bomag BW145PDH3
Contents:
| Overall Length | 13.76 in (4194 mm) |
| Height To Top Of Cab | 9.03 ft in (2750 mm) |
| Wheelbase | 7.29 in (2222 mm) |
| Ground Clearance | 12.33 in (313 mm) |
| Drum Diameter - Front | 3.43 ft in (1044 mm) |
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4L 2011 |
| Gross Power | 75 hp (56 kw) |
| Power Measured @ | 2650 rpm |
| Operating Weight | 11750.7 lb (5330 kg) |
| Fuel Capacity | 29.1 gal (110 L) |
| Max Speed | 6.3 mph (10 km/h) |
| Tires *If Applicable | 335/80R20 |
| Operating Voltage | 12 V |
| Drum Width | 56.2 in (1426 mm) |
| Drum Diameter | 41.7 in (1058 mm) |
| Vibration Frequency 1 | 34 Hz |
| Nominal Amplitude - Med | 0.1 in (1.4 mm) |
| Vibration Frequency 2 | 34 Hz |
| Centrifugal Force - Med | 11240.5 lb (50 kN) |
