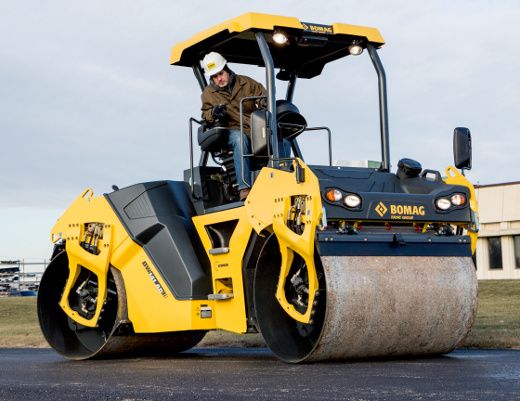

Bomag BW 141 AD-5
Browse All Bomag or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 173.2 in (4399.28 mm) |
| Overall Width | 5.46 ft in (1663.7 mm) |
| Height To Top Of Cab | 9.85 ft in (2999.74 mm) |
| Wheelbase | 129.9 in (3299.46 mm) |
| Ground Clearance | 9.81 in (248.92 mm) |
| Track Radius Inner | 176.4 in (4480.57 mm) |
Steering System
| Steering Method | Hydrostatic |
Engine
| Emissions Certification | 3b/4 |
| Number Of Cylinders | 4 |
| Cooling Method | Water |
| Engine Make | Kubota |
| Engine Type | V3307 CR-T |
| Gross Power | 74.3 hp (55.4 kw) |
| Power Measured @ | 2400 rpm |
Operational
| Operating Weight | 15211.9 lb (6900 kg) |
| Fuel Capacity | 33 gal (125 L) |
| Water Spray System Fluid Capacity | 158.5 gal (600 L) |
| Operating Voltage | 12 V |
Drum
| Drum Width | 59.1 in (1501.2 mm) |
| Drum Diameter | 43.3 in (1099.9 mm) |
| Vibration Frequency 1 | 45 Hz |
| Nominal Amplitude - High | 0.1 in (0.8 mm) |
| Vibration Frequency 2 | 50 Hz |
| Centrifugal Force - High | 10116 lb (45 kN) |
Weights
| Front Axle Weight | 7848 lb (3559.8 kg) |
| Rear Axle Weight | 7363 lb (3339.9 kg) |
| Static Linear Load, Front | 132.7 lb/in (23.7 kg/cm) |
| Static Linear Load, Rear | 124.9 lb/in (22.4 kg/cm) |
| Grossweight | 19180 lb (8700 kg) |
Brakes
| Parking Brake | Multi disc |
| Service Brake | Hydrostatic |
