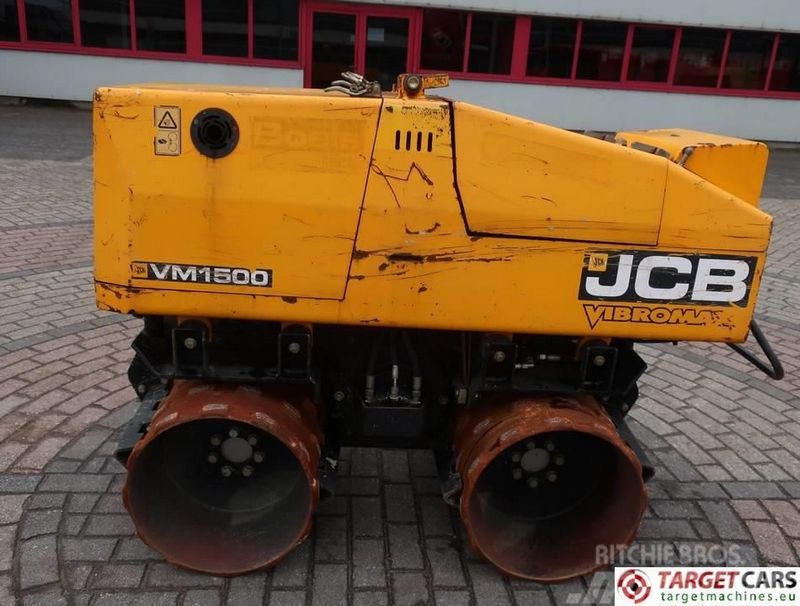

JCB VM1500
Browse All JCB or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 5.42 ft in (1650 mm) |
| Height To Top Of Cab | 4.49 ft in (1366 mm) |
| Wheelbase | 2.79 in (850 mm) |
| Ground Clearance | 6.7 in (170.18 mm) |
Drum
| Drum Diameter | 19.69 in (500 mm) |
| Drum Width | 33.47 in (850 mm) |
| Nominal Amplitude - High | 0.09 in (2.29 mm) |
| Vibration Frequency 1 | 31 Hz |
| Centrifugal Force - High | 18880 lb (83.99 kN) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2334 |
| Engine Model | D1005-BB-EC |
| Gross Power | 22.8 hp (17.1 kw) |
| Power Measured @ | 3000 rpm |
| Displacement | 61 cu in (1 L) |
Operational
| Operating Weight | 3307 lb (1500.1 kg) |
| Fuel Capacity | 5.8 gal (22 L) |
| Engine Oil Capacity | 1.1 gal (4 L) |
| Hydraulic System Fluid Capacity | 18.5 gal (70.1 L) |
| Max Speed | 1.6 mph (2.6 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
