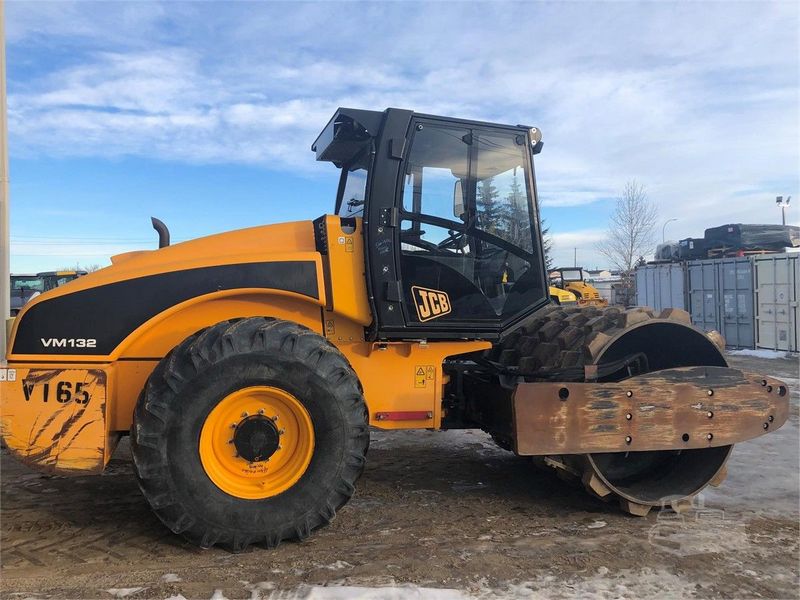

JCB VM132PD
Browse All JCB or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 18.78 ft in (5722 mm) |
| Width Over Tires | 7.45 ft in (2270 mm) |
| Height To Top Of Cab | 9.63 ft in (2935 mm) |
| Wheelbase | 9.83 in (2996 mm) |
| Ground Clearance | 17.6 in (447 mm) |
Drum
| Drum Diameter | 59.06 in (1500 mm) |
| Vibratory Frequency 2 | 36 Hz |
| Number Of Pads | 132 |
| Drum Width | 82.68 in (2100 mm) |
| Nominal Amplitude - High | 0.08 in (2 mm) |
| Centrifugal Force - High | 68567 lb (305.01 kN) |
| Pad Height | 3.94 in (100 mm) |
| Vibration Frequency 1 | 29 Hz |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | B5.9 - 150C |
| Gross Power | 150 hp (111.9 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 359 cu in (5.9 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 29542 lb (13400 kg) |
| Fuel Capacity | 105.7 gal (400 L) |
| Cooling System Fluid Capacity | 5.1 gal (19 L) |
| Engine Oil Capacity | 3.8 gal (14.2 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Max Speed | 7.9 mph (12.7 km/h) |
| Tires | 23.1-26/12 Tractor tread |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
