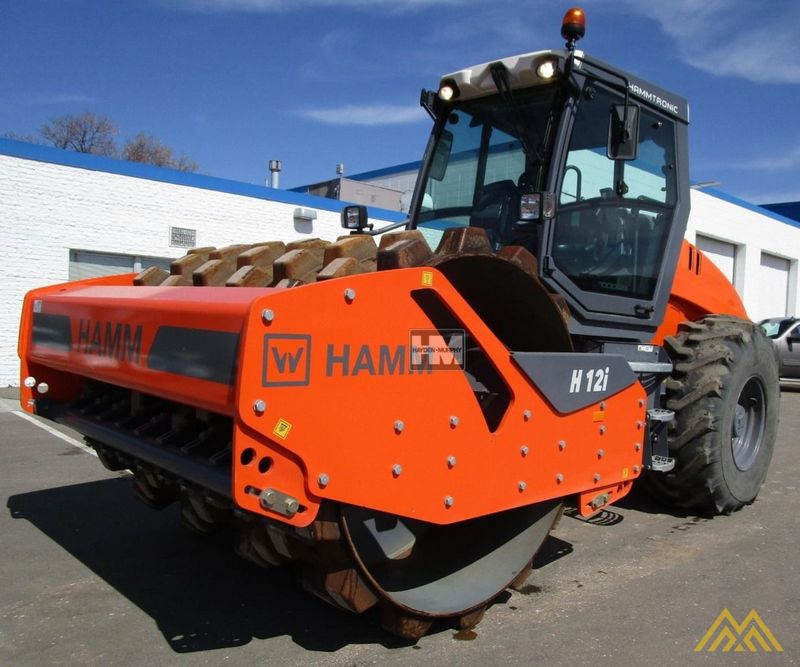

Hamm H12i P
Browse All Hamm or Vibratory Compactor Models
Contents:
Dimensions
| Height To Top Of Cab | 9.72 ft in (2960 mm) |
| Wheelbase | 124.02 in (3150 mm) |
| Ground Clearance | 15.36 in (390 mm) |
| Turning Radius - Inside | 12.7 ft in (3870 mm) |
| Overall Width | 7.5 ft in (2284 mm) |
| Overall Length | 19.2 ft in (5850 mm) |
Drum
| Drum Diameter | 66.3 in (1684 mm) |
| Pad Height | 3.94 in (100 mm) |
| Vibration Frequency 1 | 30 Hz |
| Vibratory Frequency 2 | 36 Hz |
| Nominal Amplitude - Low | 0.04 in (0.8 mm) |
| Centrifugal Force - Low | 30574.02 lb (136 kN) |
| Drum Thickness | 0.6 in (15 mm) |
| Drum Width | 84.26 in (2140 mm) |
| Nominal Amplitude - High | 0.08 in (1.9 mm) |
| Centrifugal Force - High | 55303 lb (246 kN) |
| Number Of Pads | 140 |
Engine
| Emissions Level | EU Stage IV / EPA Tier 4 |
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 3.6 L4 |
| Gross Power | 114 hp (85 kw) |
| Net Power | 114 hp (85 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Smooth Drum Operating Weight With Cab | 27249.2 lb (12360 kg) |
| Def Tank Capacity | 8.5 gal (32 L) |
| Operating Weight Rops | 26698 lb (12110 kg) |
| Oscillating Angle | 10 degrees |
| Operating Weight | 29740.4 lb (13490 kg) |
| Fuel Capacity | 74 gal (280 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Tires | TR 23.1-26 12 PR |
