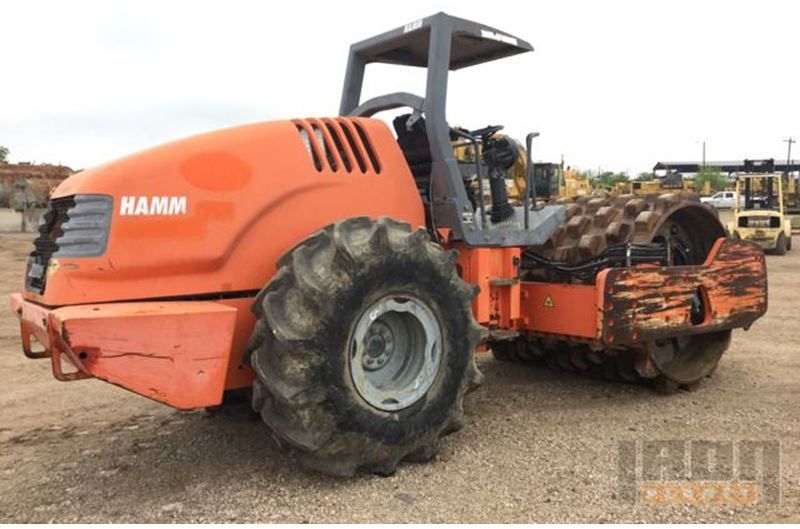

Hamm 3520P
Browse All Hamm or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 20.38 ft in (6210 mm) |
| Width Over Tires | 7.85 ft in (2390 mm) |
| Height To Top Of Cab | 10.01 ft in (3050 mm) |
| Wheelbase | 124.61 in (3165 mm) |
| Ground Clearance | 16.74 in (425 mm) |
| Overall Length | 20.38 ft in (6210 mm) |
| Overall Width | 7.85 ft in (2390 mm) |
| Turning Radius - Inside | 13.72 ft in (4180 mm) |
Drum
| Drum Diameter | 70.24 in (1784 mm) |
| Number Of Pads | 150 |
| Centrifugal Force - High | 74411.76 lb (331 kN) |
| Drum Thickness | 1.38 in (35 mm) |
| Pad Height | 3.94 in (100 mm) |
| Pad Surface Area | 23.87 in2 (15400 cm2) |
| Centrifugal Force - Low | 54628.57 lb (243 kN) |
| Vibration Frequency 1 | 27 Hz |
| Vibratory Frequency 2 | 30 Hz |
| Drum Width | 87.41 in (2220 mm) |
| Nominal Amplitude - Low | 0.05 in (1.15 mm) |
| Nominal Amplitude - High | 0.08 in (1.93 mm) |
Engine
| Emission Tier Level | EU Stage IIIA / EPA Tier 3 |
| Number Of Cylinders | 6 |
| Engine Make | DEUTZ |
| Engine Model | TCD 2012 L06 |
| Gross Power | 207.9 hp (155 kw) |
| Net Power | 207.9 hp (155 kw) |
Operational
| Smooth Drum Operating Weight With Cab | 44092.5 lb (20000 kg) |
| Operating Weight Rops | 43607.5 lb (19780 kg) |
| Oscillating Angle | 10 degrees |
| Operating Weight | 47906.5 lb (21730 kg) |
| Fuel Capacity | 76.7 gal (290 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Tires | TR 23.1-26 12 PR |
