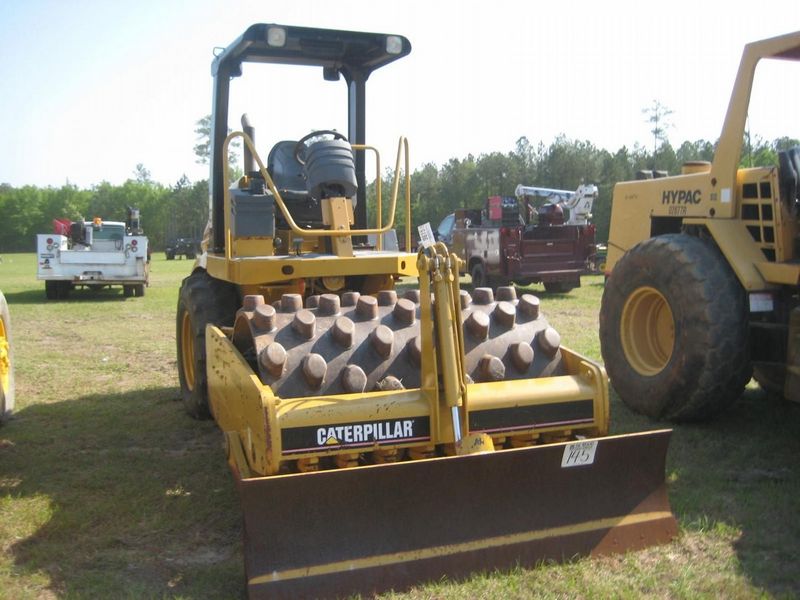

Caterpillar CP433E
Browse All Caterpillar or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 16.28 ft in (4960 mm) |
| Width Over Tires | 5.42 ft in (1650 mm) |
| Height To Top Of Cab | 9.75 ft in (2970 mm) |
| Wheelbase | 8.54 in (2600 mm) |
| Ground Clearance | 15.87 in (403 mm) |
| Overall Length W/ Blade | 17.52 ft in (5340 mm) |
Drum
| Drum Diameter | 48.23 in (1225 mm) |
| Pad Surface Area | 9.89 in2 (6380 cm2) |
| Vibration Frequency 1 | 31.9 Hz |
| Number Of Pads | 108 |
| Centrifugal Force - Low | 15062.2 lb (67 kN) |
| Drum Width | 65.99 in (1676 mm) |
| Nominal Amplitude - High | 0.07 in (1.55 mm) |
| Nominal Amplitude - Low | 0.04 in (0.78 mm) |
| Centrifugal Force - High | 30124.4 lb (134 kN) |
| Pad Height | 3.55 in (90 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3054C |
| Gross Power | 100.6 hp (75 kw) |
| Net Power | 96.6 hp (72 kw) |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight | 16292.2 lb (7390 kg) |
| Fuel Capacity | 42.3 gal (160 L) |
| Cooling System Fluid Capacity | 4.8 gal (18 L) |
| Engine Oil Capacity | 1.8 gal (6.8 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Max Speed | 7.2 mph (11.5 km/h) |
| Tires | 14.9x24 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Blade
| Blade Width | 6.9 ft in (2100 mm) |
| Blade Height | 22.1 in (559 mm) |
