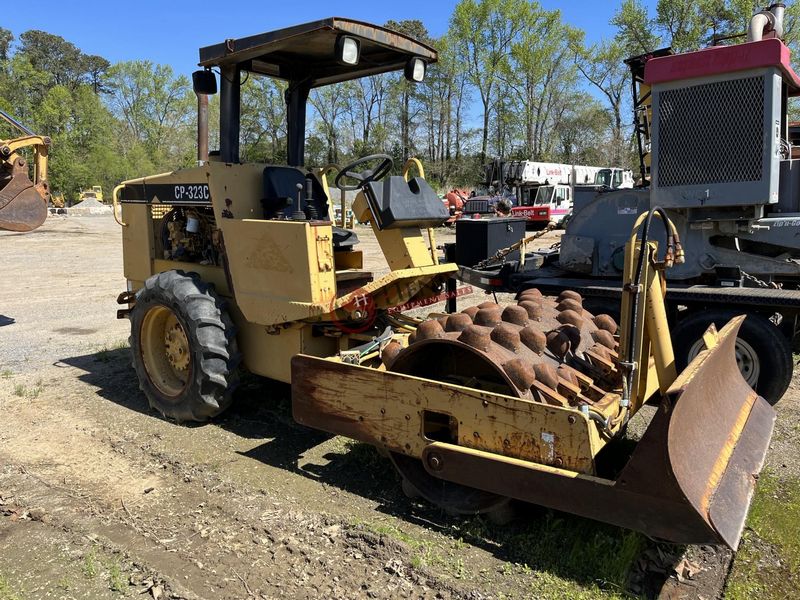

Caterpillar CP323C
Browse All Caterpillar or Vibratory Compactor Models
Contents:
Dimensions
| Overall Length W/O Blade | 13.44 ft in (4095 mm) |
| Width Over Tires | 4.58 ft in (1393 mm) |
| Height To Top Of Cab | 8.25 ft in (2514 mm) |
| Wheelbase | 7.35 in (2240 mm) |
| Ground Clearance | 13.67 in (347 mm) |
Drum
| Drum Diameter | 40 in (1016 mm) |
| Centrifugal Force - High | 15017.24 lb (66.8 kN) |
| Drum Width | 50 in (1270 mm) |
| Vibration Frequency 1 | 35 Hz |
Engine
| Engine Model | 3054 DINA |
| Gross Power | 70 hp (52.2 kw) |
| Displacement | 244.1 cu in (4 L) |
Operational
| Operating Weight | 10461 lb (4745 kg) |
| Fuel Capacity | 38.1 gal (144 L) |
| Engine Oil Capacity | 2.1 gal (7.6 L) |
| Hydraulic System Fluid Capacity | 13 gal (49.2 L) |
| Max Speed | 5.6 mph (8.9 km/h) |
| Tires | 11.2x24-6 ply |
