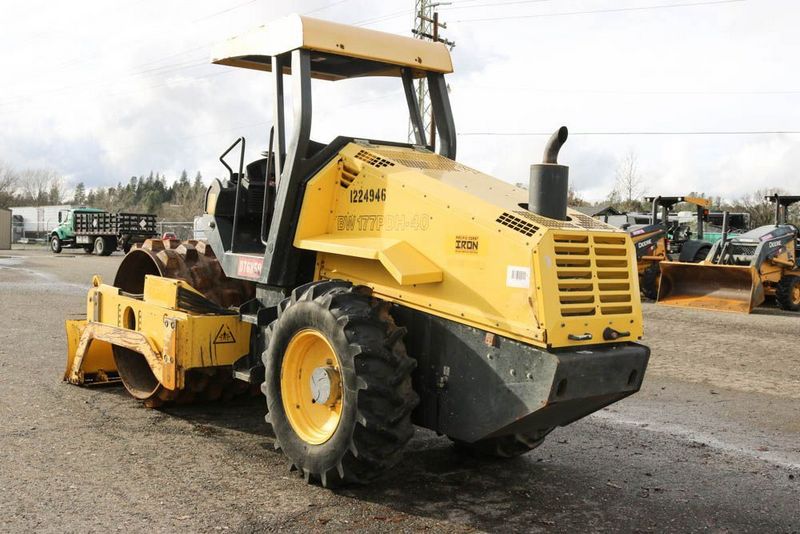

Bomag BW177PDH-40
Contents:
| Overall Length W/O Blade | 16.12 ft in (4913 mm) |
| Width Over Tires | 6.17 ft in (1880 mm) |
| Height To Top Of Cab | 9.39 ft in (2860 mm) |
| Wheelbase | 8.21 in (2500 mm) |
| Ground Clearance | 14.77 in (375 mm) |
| Drum Diameter | 47.56 in (1208 mm) |
| Pad Surface Area | 15.3 in2 (9870.95 cm2) |
| Vibration Frequency 1 | 30 Hz |
| Vibratory Frequency 2 | 40 Hz |
| Drum Width | 66.38 in (1686 mm) |
| Centrifugal Force - High | 30349.21 lb (135 kN) |
| Nominal Amplitude - High | 0.07 in (1.7 mm) |
| Number Of Pads | 104 |
| Pad Height | 3.15 in (80 mm) |
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | QSB3.3 |
| Gross Power | 110 hp (82.1 kw) |
| Power Measured @ | 2400 rpm |
| Operating Weight | 16115 lb (7309.7 kg) |
| Fuel Capacity | 39.7 gal (150 L) |
| Max Speed | 8.1 mph (13 km/h) |
| Tires | 14.9-24/6PR |
| Operating Voltage | 12 V |
