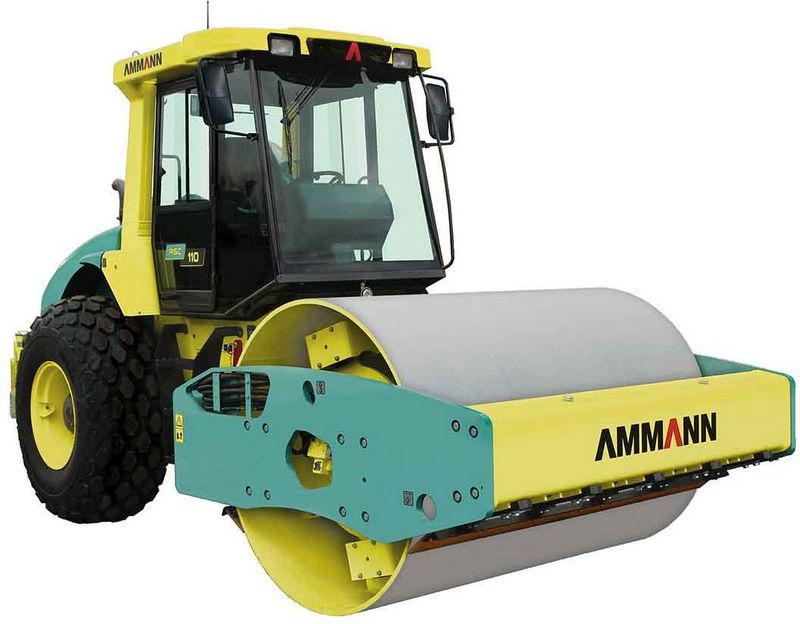

Ammann ASC110PD
Contents:
| Overall Length W/O Blade | 18.66 ft in (5686 mm) |
| Width Over Tires | 8 ft in (2436 mm) |
| Height To Top Of Cab | 9.95 ft in (3030 mm) |
| Wheelbase | 9.26 in (2820 mm) |
| Ground Clearance | 16.54 in (420 mm) |
| Drum Diameter | 56.7 in (1440 mm) |
| Pad Height | 3.94 in (100 mm) |
| Pad Surface Area | 18.61 in2 (12000 cm2) |
| Vibration Frequency 1 | 32 Hz |
| Vibratory Frequency 2 | 35 Hz |
| Number Of Pads | 140 |
| Centrifugal Force - Low | 62272.08 lb (277 kN) |
| Drum Width | 86.62 in (2200 mm) |
| Nominal Amplitude - High | 0.05 in (1.15 mm) |
| Nominal Amplitude - Low | 0.08 in (1.85 mm) |
| Centrifugal Force - High | 46310.64 lb (206 kN) |
| Engine Make | 2347 |
| Engine Model | QSB4.5-C160 |
| Net Power | 158 hp (117.9 kw) |
| Operating Weight | 26290.2 lb (11925 kg) |
| Fuel Capacity | 108.4 gal (410 L) |
| Max Speed | 6.6 mph (10.6 km/h) |
| Tires | 23.1-26 |
