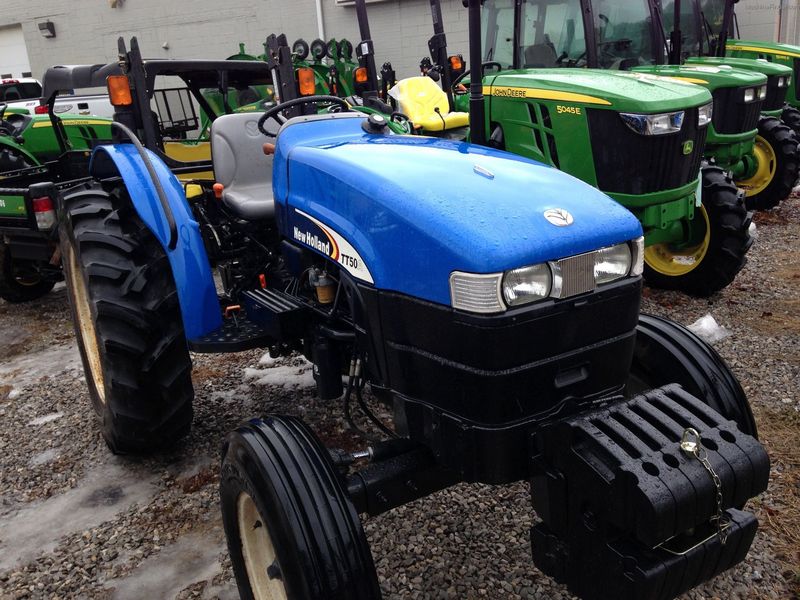

New Holland TT50A
Browse All New Holland or Utility Tractor Models
Contents:
Engine
| Number Of Cylinders | 4 |
| Gross Power | 48 hp (35.8 kw) |
| Pto Power | 42 hp (31.4 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 134.3 cu in (2.2 L) |
Operational
| Fuel Capacity | 13.5 gal (51 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 2557.4 lb (1160 kg) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Transmission
| Transmission Type | 8FX2R with 4 constant mesh gears and 2 constant mesh ranges |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 2 |
| Max Speed | 19 mph (30.5 km/h) |
Hydraulic System
| Relief Valve Setting | 2538 psi (17498.9 kPa) |
| Pump Flow Capacity | 17.2 gal/min (65 L/min) |
