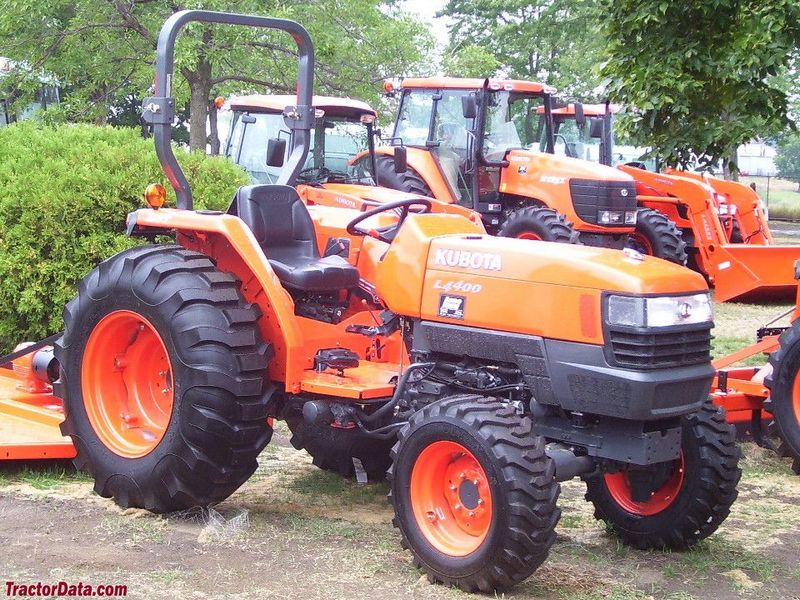

Kubota L4400 Gear
Browse All Kubota or Utility Tractor Models
Contents:
Dimensions
| Overall Length | 10.22 in (3115 mm) |
| Wheelbase | 6.07 ft in (1850 mm) |
| Overall Width | 5.21 ft in (1585 mm) |
| Height With Rops | 7.12 ft in (2170 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | L4400 Gear |
| Gross Power | 33.8 hp (25.3 kw) |
| Pto Power | 37.5 hp (28 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 134.1 cu in (2.2 L) |
| Aspiration | E-TVCS indirect injection |
Operational
| Operating Weight | 3031.4 lb (1375 kg) |
| Fuel Capacity | 11.4 gal (43 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 2321.5 lb (1053 kg) |
| Turning Radius | 9.2 ft in (2800 mm) |
| Tire Size Front - 2wd / 4wd | 7.5L-15 |
| Rear Tires Size 2wd/4wd | 14.9-254 |
| Operating Voltage | 12 V |
Transmission
| Transmission Type | sliding gear constant mesh |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 4 |
| Max Speed | 15 mph (24 km/h) |
Hydraulic System
| Pump Flow Capacity | 7.8 gal/min (29.4 L/min) |
