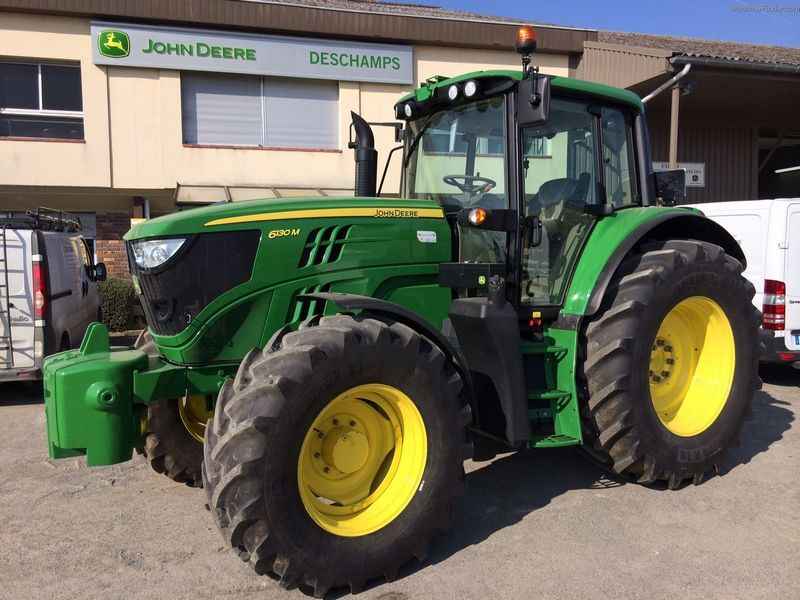

John Deere 6120M
Browse All John Deere or Utility Tractor Models
Contents:
Dimensions
| Approximate Shipping Weight (Open-Station; Cab) | MFWD - 5210 kg 11486 lb |
| Front Axle Clearance - Mfwd | 23.9 in (607 mm) |
| Front Tread Range | 2WD - 1534 to 2042 mm 60.4 to 80.4 in., MFWD - 1494 to 2206 mm 58.8 to 86.8 in. |
| Limited Slip Differential | Yes |
| Turning Radius With Brakes | 7.1 m 23.5 ft |
| Turning Radius Without Brakes | 23.3 ft in (7.1 m) |
| Unballasted Operating Weight | 11486.09 lb (5210 kg) |
| Wheelbase - 2wd | 101.58 in (2580 mm) |
| Wheelbase - Mfwd | 101.58 in (2580 mm) |
Engine
| Number Of Cylinders | 4 |
| Rated Engine Speed | 82 @ 2100 kW 120 @ 2100 hp |
| Engine Manufacturer | John Deere PowerTech PWL (B20 Diesel Compatible) |
| Cylinder Liners | Wet sleeve |
| Rated Pto Power | 64 @ 2100 kW 94 @ 2100 hp |
| Displacement | 4.5 L 275 cu in. |
| Aspiration | Dual Series Turbocharger w/fixed geometry first stage-variable geometry second stage - air-to-air aftercooling and cooled exhaust gas recirculation |
| Fuel Tank Capacity | 54.2 gal (205 L) |
Power Take-Off(Pto)
| Standard | Independent 1-3/8 in., 540/1000 reversible shaft |
| Optional | Independent 540 rpm |
| Pto Actuation | Electronic |
Transmission
| Standard Transmission; Forward/Reverse | 16 Speed PowrQuad Transmission 30K (OOS Only); 16 Speed PowrQuad PLUS? Transmission 30K (Cab Only) |
| Optional Transmission; Forward/Reverse | 24 Speed PowrQuad Transmission 40K (OOS Only); 24 Speed PowrQuad PLUS Transmission 40K (Cab Only); 24 Speed AutoQuad PLUS Transmission 40K (Cab Only); Creeper available |
| Clutch, Wet/Dry | Wet |
| Creeper | Yes |
| Reverser | Left-hand base |
| On-The-Go Shifting (Yes/No/Partial) | Yes |
Tires
| 2wd | 10.00-16 10PR F2 Bias - Front in. 460/85R38 149A8 R1W Radial - Rear in. |
| Mfwd | Front 380/85R28 133A8 R1W Radial in.Rear 460/85R38 149A8 R1W Radial in. |
Hydraulic
| Maximum Operating Pressure | 2900.8 psi (20000 kPa) |
| Remote Control Valves Available | Up to 3 rear mechanical or 3 with power beyond, 3 mid-mount mechanical |
| Hitch Draft Control Load Sense Type | Electrohydraulic |
| Hitch Category (Sae Designation) | Category 2/3N |
| Sensing Type | Electronic lower link |
| Joystick Scv Control | Mechanical and Electronic |
| Pump Rated Output | Standard 80 Advertised - Base (PC) L/min 21.1 Advertised - Base (PC) gpmOptional 114 Advertised - Option (PFC) L/min 30 Advertised - Option (PFC) gpm |
| Hydraulic Type | Pressure Compensated (PC) System with Load Sensing Function - Base Pressure & Flow Compensated (PFC) System with Load Sensing Function - Option |
Final Drive
| Final Drive Type | Inboard planetary three pinion |
| Differential Controls | Electrohydraulic |
| Availability | Front YesFront & Rear Yes |
| Engage On-The-Go Rear Differential Lock | Yes |
| Axle Type | Flanged axle, 8 position adjustable steel wheels - Base, Options: Flanged axle, 2 position fixed steel wheels 79.45 x 2555 with 2-Position Fixed Cast Wheels mm 3.1 x 100.6 with 2-Position Fixed Cast Wheels in. 79.45 x 2555 with 2-Position Fixed Steel Wheels mm 3.1 x 100.6 with 2-Position Fixed Steel Wheels in. |
| Brakes, Type And Control | Hydraulic wet disk |
