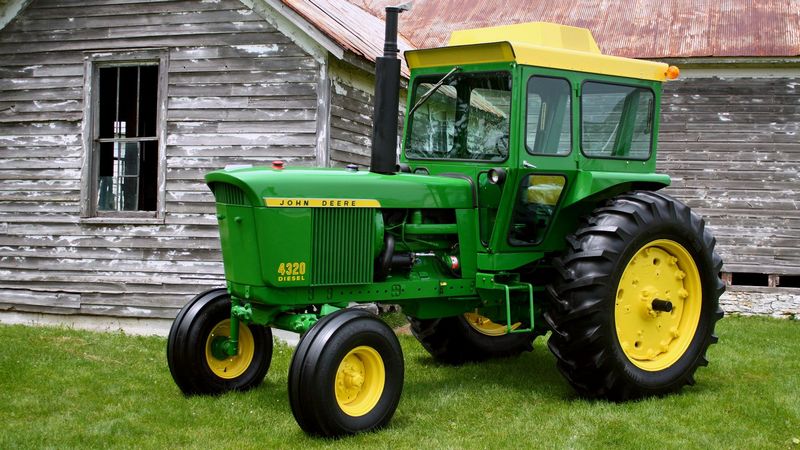

John Deere 4320
Browse All John Deere or Utility Tractor Models
Contents:
Dimensions
| Wheelbase | 5.96 ft in (1816 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4024T |
| Gross Power | 48 hp (35.8 kw) |
| Pto Power | 40.5 hp (30.3 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 102 lb ft (138.3 Nm) |
| Torque Measured @ | 2400 rpm |
| Displacement | 148.9 cu in (2.5 L) |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 14.6 gal (54.9 L) |
| Cooling System Fluid Capacity | 1.7 gal (6.2 L) |
| Engine Oil Capacity | 2 gal (7.5 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 2500.1 lb (1134 kg) |
| Turning Radius | 9.2 ft in (2800 mm) |
| Tire Size Front - 2wd / 4wd | 8.00-16 R1 |
| Rear Tires Size 2wd/4wd | 13.6-28 R1 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 75 amps |
Transmission
| Transmission Type | PowrReverser |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 12 |
Hydraulic System
| Relief Valve Setting | 2500 psi (17236.9 kPa) |
| Pump Flow Capacity | 17.1 gal/min (64.6 L/min) |
| Number Of Remote Control Valves | 5 |
