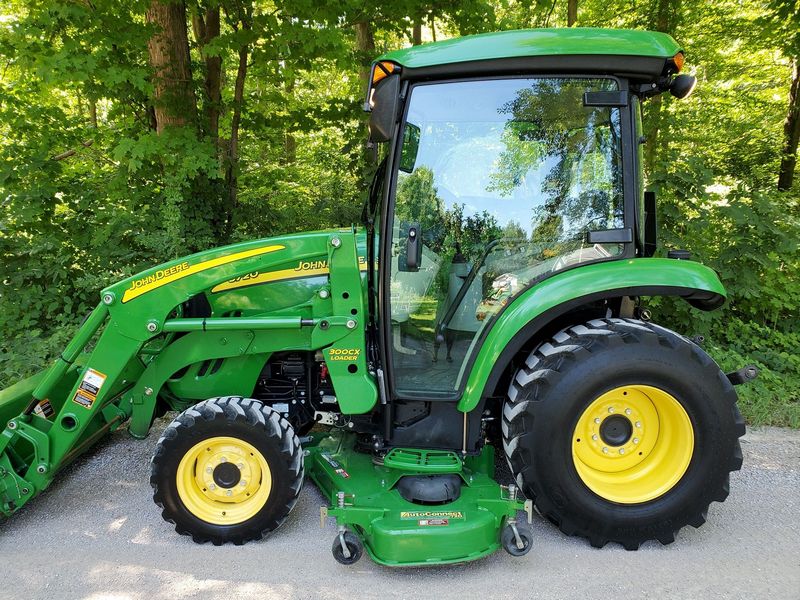

John Deere 3720
Browse All John Deere or Utility Tractor Models
Contents:
Dimensions
| Wheelbase | 5.67 ft in (1727 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2348 |
| Engine Model | 3TNV84HT |
| Gross Power | 44 hp (32.9 kw) |
| Pto Power | 35 hp (26.1 kw) |
| Power Measured @ | 2600 rpm |
| Max Torque | 84.3 lb ft (114.3 Nm) |
| Torque Measured @ | 2600 rpm |
| Displacement | 91.6 cu in (1.5 L) |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 13.5 gal (51.1 L) |
| Engine Oil Capacity | 1.6 gal (5.7 L) |
| Cooling System Fluid Capacity | 0.4 gal (1.4 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 2202.5 lb (999 kg) |
| Turning Radius | 8.8 ft in (2680 mm) |
| Tire Size Front - 2wd / 4wd | 7-14 / 6PR R1 |
| Rear Tires Size 2wd/4wd | 11.2-24 / 6PR/R1 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Transmission
| Transmission Type | eHydro |
Hydraulic System
| Relief Valve Setting | 2500 psi (17236.9 kPa) |
| Pump Flow Capacity | 13.9 gal/min (52.5 L/min) |
| Number Of Remote Control Valves | 5 |
