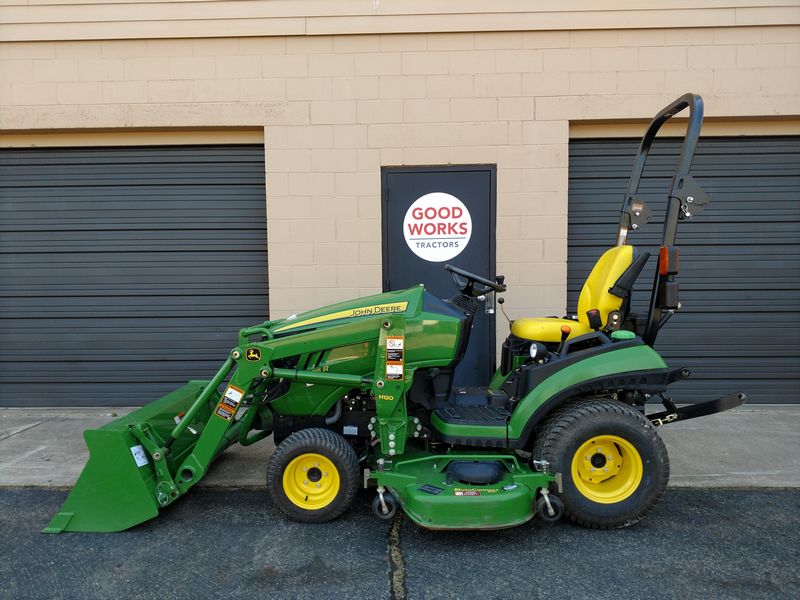

John Deere 1025R
Browse All John Deere or Utility Tractor Models
Contents:
Dimensions
| Wheelbase | 57.1 ft in (1450.34 mm) |
| Front Axle Clearance | 7.68 in (195 mm) |
| Limited Slip Differential | No |
| Shipping Weight | 655 kg |
| Turning Radius Without Brakes | 7.39 ft in (2.25 m) |
Engine
| Number Of Cylinders | 3 |
| Rated Engine Speed | 3200 rpm |
| Engine Model | 3TNV80F-NCJT |
| Engine Manufacturer | Yanmar |
| Family | EYDXL1.27NS1, FYDXL1.27NS1, GYDXL1.27NS1 |
| Power Take-Off (Pto) Power | 18 hp |
| Engine Type | Diesel |
| Injection Pump Type | Indirect Injection |
| Emissions Compliance | Final Tier 4 |
| Cylinder Liners | Cast-In-Block |
| Compression Ratio | 23.0:1 |
| Gross Power | 23.9 hp (17.8 kw) |
| Lubrication | Pressurized |
| Cooling System | Water pump |
| Air Cleaner | Dual element with mechanical restriction indicator |
| Engine Torque At Rated Speed | 55.2 Nm |
| Displacement | 77.4 cu in (1.3 L) |
| Aspiration | Natural |
| Fuel Tank Capacity | 5.7 gal (21.2 L) |
| Bore | 3.2 in (80 mm) |
| Stroke | 3.4 in (84 mm) |
Fluid Capacities
| Crankcase With Filter | 2.7 L |
| Transmission And Hydraulic System | 14 L |
Electrical
| Battery Size | 500 CCA |
| Alternator (12-V) | 40 amp |
| Starter Size | 1.6 hp |
Fuel System
| Fuel System Type | Indirect Injection |
| Fuel Consumption | 1.5 gal/hr |
Power Take-Off(Pto)
| Standard | Rear - 540 rpm, Mid - 2100 rpm |
| Control | Independent |
| Clutch | Wet disc |
| Brake (For Mid And Rear Pto) | Wet disc |
Transmission
| Cruise Control | Standard |
| Standard Transmission; Forward/Reverse | Hydrostatic - 2 range |
| Left-Hand Reverser | No |
| Brakes | Wet disc (left-hand pedal) |
| Steering | Power |
| Axle Capacity | Front - 612 kg, Rear - 715 kg |
| Creeper | No |
| Differential Lock | Yes |
| Final Drive Type | Bull Gear |
Tires
| Front Tread Range | 91.8 cm |
| Front | R4 - 18x8.5-10 |
| Rear | R4 - 26x12-12 |
Hydraulic
| Maximum Operating Pressure | 2000 psi (13789.6 kPa) |
| Draft Control Sensing | Position control |
| Remote Control Valves Available | 2 |
| Pump Rated Output | Steering - 10.8 L/min, Implement - 13.2 L/min |
| Pump Type | Gear |
| Hydraulic Type | Open Center |
Final Drive
| Final Drive Type | Bull Gear |
| Differential Lock | Yes |
3-Point Hitch
| Category | Limited Category 1 |
| Lift Capacity, 24-In. Behind Link Arms | 309 kg |
Operator Station
| Rollover Protective Structure | Foldable |
| Platform - Flat/Straddle | One-piece semi flat |
| Gear Shift Location - Console/Floor | Left Hand Side |
