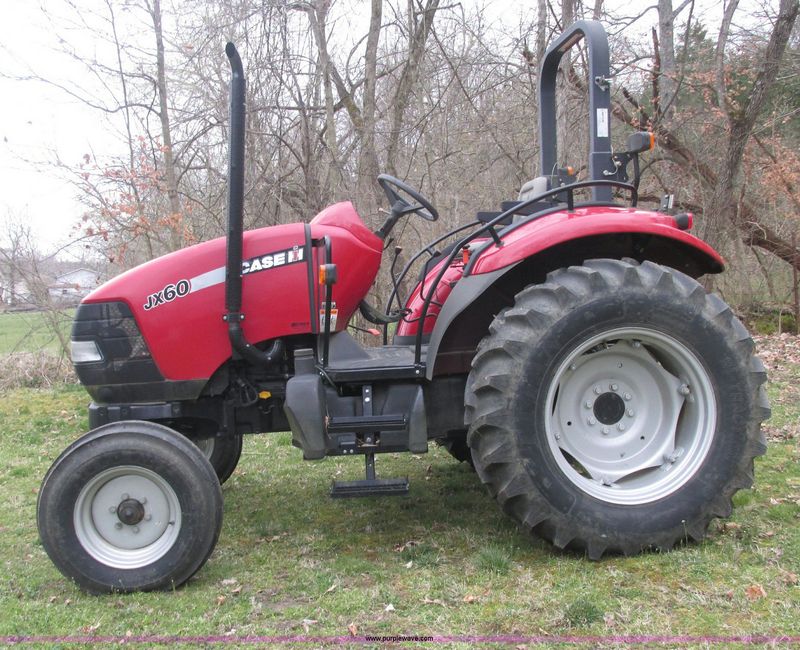

Case IH JX60
Browse All Case IH or Utility Tractor Models
Contents:
Dimensions
| Wheelbase | 7.17 ft in (2184 mm) |
| Height With Rops | 8.09 ft in (2464 mm) |
Engine
| Number Of Cylinders | 3 |
| Gross Power | 55 hp (41.1 kw) |
| Pto Power | 45 hp (33.6 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 177 cu in (2.9 L) |
| Aspiration | Naturally Aspirated |
Operational
| Operating Weight | 5813 lb (2636.8 kg) |
| Fuel Capacity | 23.8 gal (90 L) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 4010 lb (1819 kg) |
| Rear Tires Size 2wd/4wd | 14.9 x 28 |
| Alternator Supplied Amperage | 85 amps |
Transmission
| Transmission Type | 12x12 w / mechanical shuttle |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 12 |
Hydraulic System
| Relief Valve Setting | 2755 psi (18995.1 kPa) |
| Pump Flow Capacity | 21.7 gal/min (82.2 L/min) |
