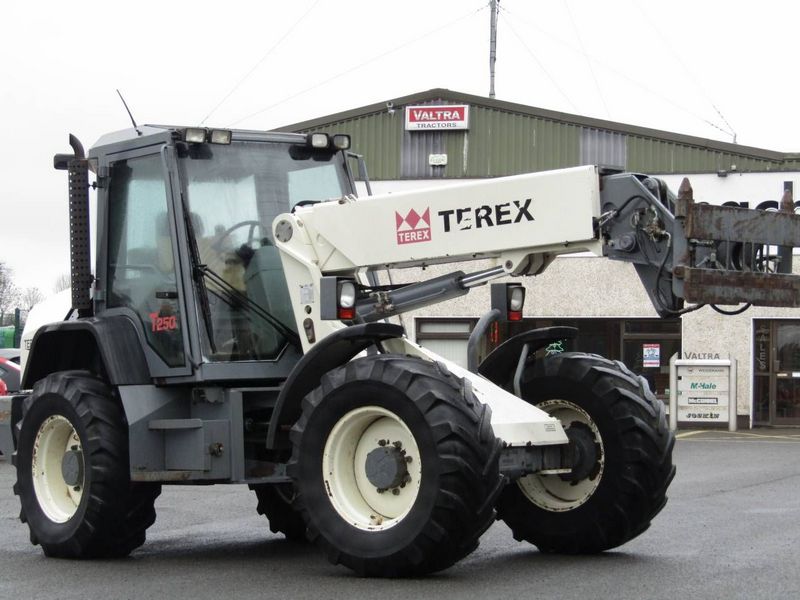

Terex T250
Browse All Terex or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 15.42 ft in (4700 mm) |
| Ground Clearance | 1.46 ft in (445 mm) |
| Width Over Tires | 7.27 ft in (2215 mm) |
| Overall Height | 8.83 ft in (2690 mm) |
| Wheelbase | 8.21 ft in (2500 mm) |
| Turning Radius Outside Tires | 13.78 ft in (4200 mm) |
Lift
| Max Lift Height | 18.05 ft in (5500 mm) |
| Max Load At Max Reach | 2755.78 lb (1250 kg) |
| Max Lift Capacity | 5511.56 lb (2500 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104-44TA |
| Net Power | 122.1 hp (91 kw) |
| Aspiration | turbo |
Operational
| Fuel Capacity | 24.1 gal (91 L) |
| Hydraulic System Fluid Capacity | 24.1 gal (91 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Tire Size | 17.5xLR24 |
Transmission
| Transmission Type | Clark |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
Hydraulic
| Pump Type | load sensing |
| Pump Flow Capacity | 27.8 gal/min (105 L/min) |
