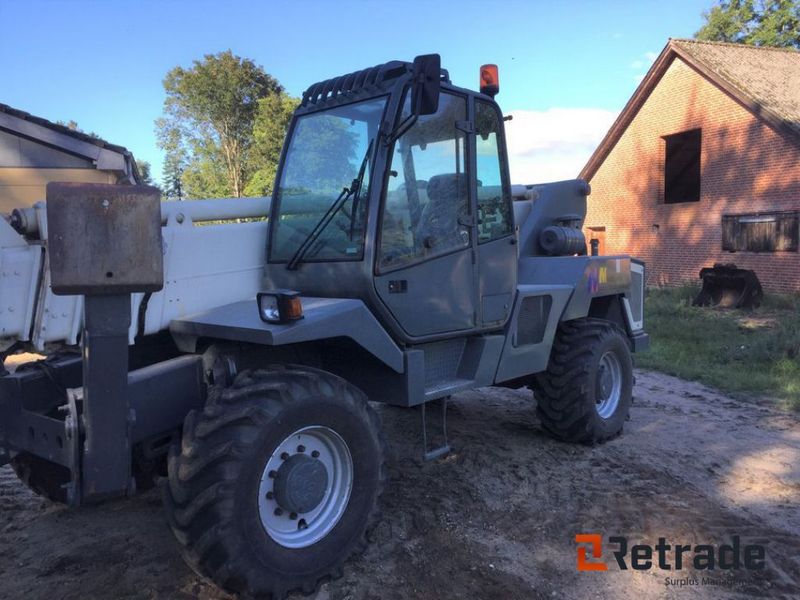

Terex 4020
Browse All Terex or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 23.4 ft in (7130 mm) |
| Ground Clearance | 17.33 ft in (440 mm) |
| Width Over Tires | 7.98 ft in (2430 mm) |
| Overall Height | 9.93 ft in (3025 mm) |
| Wheelbase | 9.95 ft in (3030 mm) |
| Turning Radius Outside Tires | 13.13 ft in (4000 mm) |
Lift
| Max Lift Height | 64.46 ft in (19645 mm) |
| Max Forward Reach | 57.42 ft in (17500 mm) |
| Max Load At Max Reach | 551.16 lb (250 kg) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Lift Capacity | 9920.81 lb (4500 kg) |
Engine
| Number Of Cylinders | 4 |
| Gross Power | 102 hp (76.1 kw) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 33510.3 lb (15200 kg) |
| Fuel Capacity | 38.4 gal (145 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Tire Size | 18/19.5'' PR16 |
Transmission
| Transmission Type | hydrostatic 2-speed mechanical gearbox |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
Hydraulic
| Pump Type | variable displacement load sensing |
| Pump Flow Capacity | 26.5 gal/min (100 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
