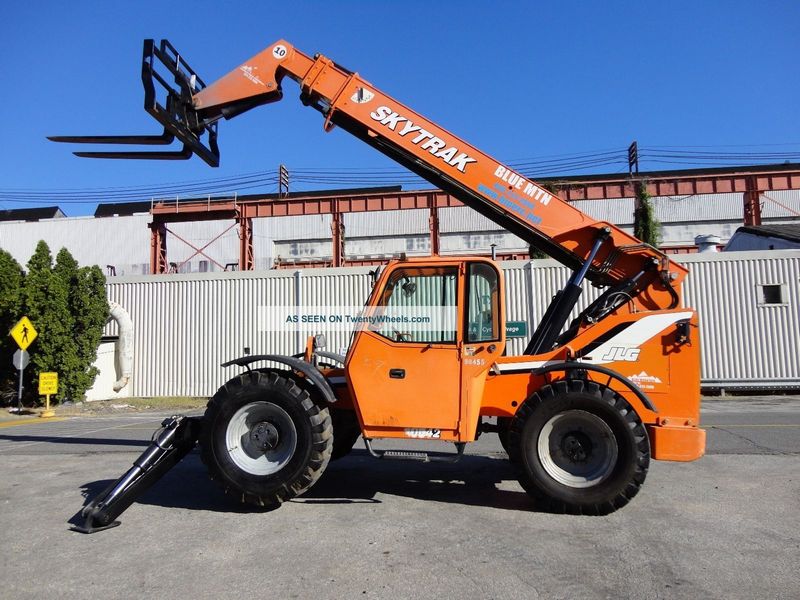

Skytrak 10042
Browse All Skytrak or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 18.77 ft in (5720 mm) |
| Ground Clearance | 1.5 ft in (457 mm) |
| Width Over Tires | 8.5 ft in (2590 mm) |
| Overall Height | 8.34 ft in (2540 mm) |
| Wheelbase | 9.95 ft in (3030 mm) |
| Turning Radius Outside Tires | 13.65 ft in (4160 mm) |
Lift
| Max Lift Height | 42.1 ft in (12832.08 mm) |
| Max Forward Reach | 26.48 ft in (8070 mm) |
| Max Load At Max Reach | 1999.6 lb (907 kg) |
| Max Load At Max Height | 8000.58 lb (3629 kg) |
| Max Lift Capacity | 10000.17 lb (4536 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | QSB4.5T |
| Gross Power | 110 hp (82.1 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 414 lb ft (561.4 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 26881 lb (12193 kg) |
| Fuel Capacity | 34.9 gal (132 L) |
| Hydraulic System Fluid Capacity | 60 gal (227.2 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
| Drawbar Pull | 23999.6 lb (10886 kg) |
| Tire Size | 17.5 x 25, 12 Ply |
Transmission
| Transmission Type | Modulated Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
Hydraulic
| Pump Type | Piston Pump |
