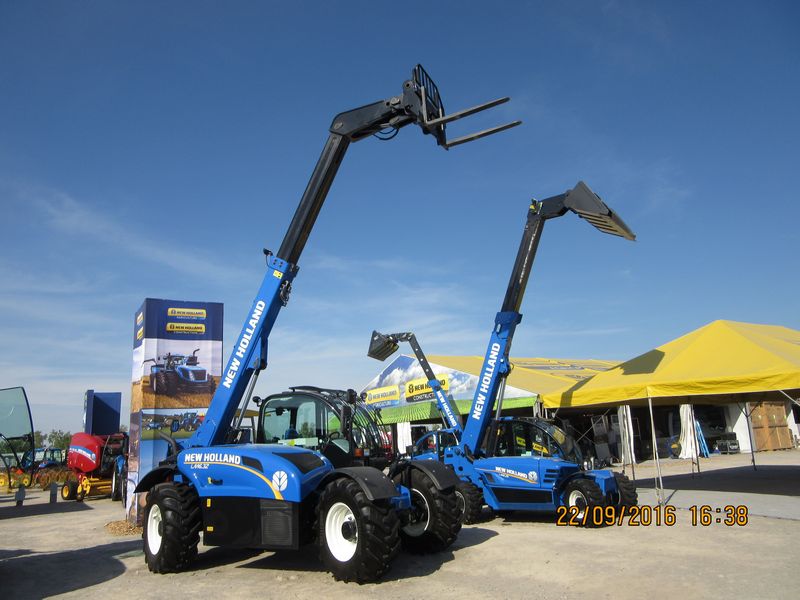

New Holland LM6.32
Browse All New Holland or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 16.34 in (415 mm) |
| Wheelbase | 118.12 in (3000 mm) |
| Axle To Carrier | 40.6 in (1031 mm) |
| Cab Height | 96.34 in (2447 mm) |
| Cab Width | 40.16 in (1020 mm) |
| Clearance Under Step | 21.66 in (550 mm) |
| Length Carrier To Counter Weight | 191.26 in (4858 mm) |
| Attachment Dump Angle | 109 degrees |
| Overall Length | 243.71 in (6190 mm) |
| Overall Width (Outside Tires) | 92.13 in (2340 mm) |
| Total Rotation Angle (X+Y) | 131 degrees |
| Total Weight With Forks, Full Fuel Tank And Driver | 17493.68 lb (7935 kg) |
| Turning Radius Over Tires | 153.55 in (3900 mm) |
| Wheel Track | 73.75 in (1873 mm) |
| Length Front Tire To Counter Weight | 175.2 in (4450 mm) |
| Attachment Roll Back Angle | 19 degrees |
Parking Brake
| Actuation | Front axle SAHR (Spring Actuated Hydraulic Release) |
| Parking Brake Type | Oil immersed discs |
Boom Controls
| Lift | Pilot |
| Tilt | Pilot |
| Extension | Electro Proportional |
| Headstock Auxiliary | Electro Hydraulic |
Hydraulic Cycle Times (Unloaded)
| Lift | 7.4 sec |
| Lower | 5.6 sec |
| Extend | 5.5 sec |
| Retract | 3.7 sec |
| Bucket Dump | 3.1 sec |
| Bucket Crowd | 3.2 sec |
Service Brakes
| Actuation | Hydraulic power assisted |
| Service Brakes Type | Oil immersed discs |
| Discs Per Axle | 6 Front axle - 4 Rear axle |
| All Four Wheels | Standard |
Engine
| Approved Biodiesel Blend | B20 |
| Max. Torque - Iso Tr14396 | 367.4 lb ft (498 Nm) |
| Rated Power Iso14396 | 108.7 hp (81 kw) |
| Max. Lift Height | 20.7 ft in (6.3 m) |
| Max Power Iso14396 | 121 hp (90.3 kw) |
| Engine Model | LM6.32 |
| Engine Type | 4 Cylinders - NEF Tier 4A Common Rail |
| Displacement | 274.7 cu in (4.5 L) |
| Max. Lift Capacity | 7054.8 lb (3200 kg) |
| Aspiration | Turbo intercooler |
Capacities
| Hydraulic Oil Tank | 27.8 gal (105 L) |
| Adblue Tank | 7.2 gal (27 L) |
| Fuel Tank | 37 gal (140 L) |
| Engine Oil | 3.2 gal (12 L) |
Transmission
| Transmission Shifting | Incorporated on Joystick |
| Speed | 4x3 |
| Travel Speed (460/70r24 Tires) | 22.9 mph (36.9 km/h) |
| Transmission Type | PowerShift™ |
Tires
| Standard | 460 / 70 R24 |
Hydraulic
| Gear Pump | 31.8 gal/min (120 L/min) |
