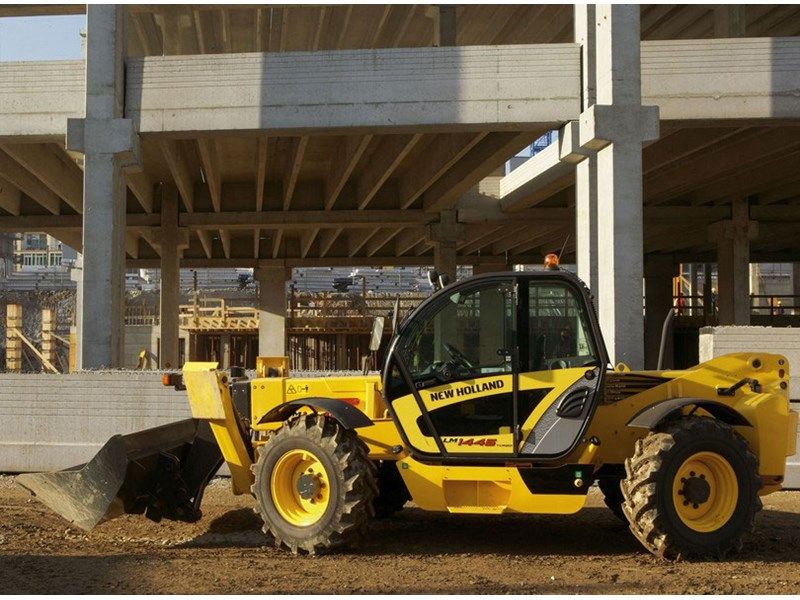

New Holland LM1445
Browse All New Holland or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 19.2 ft in (5850 mm) |
| Ground Clearance | 15.83 ft in (402 mm) |
| Width Over Tires | 8.03 ft in (2445 mm) |
| Overall Height | 8.04 ft in (2450 mm) |
| Wheelbase | 10.24 ft in (3120 mm) |
Lift
| Max Lift Height | 44.46 ft in (13550 mm) |
| Max Forward Reach | 30.62 ft in (9330 mm) |
| Max Load At Max Reach | 3306.94 lb (1500 kg) |
| Max Load At Max Height | 7936.65 lb (3600 kg) |
| Max Lift Capacity | 9920.81 lb (4500 kg) |
Engine
| Engine Model | CNH 4TAA 4.5 |
| Net Power | 112 hp (83.6 kw) |
| Max Torque | 354.1 lb ft (480 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Aspiration | turbo aftercooler |
Operational
| Operating Weight | 25265 lb (11460 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Tire Size | 13.00 x 24 |
Transmission
| Transmission Type | PowerShift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.8 mph (35 km/h) |
Hydraulic
| Pump Type | Load Sensing |
| Pump Flow Capacity | 30.4 gal/min (115 L/min) |
| Relief Valve Pressure | 3481 psi (24000 kPa) |
