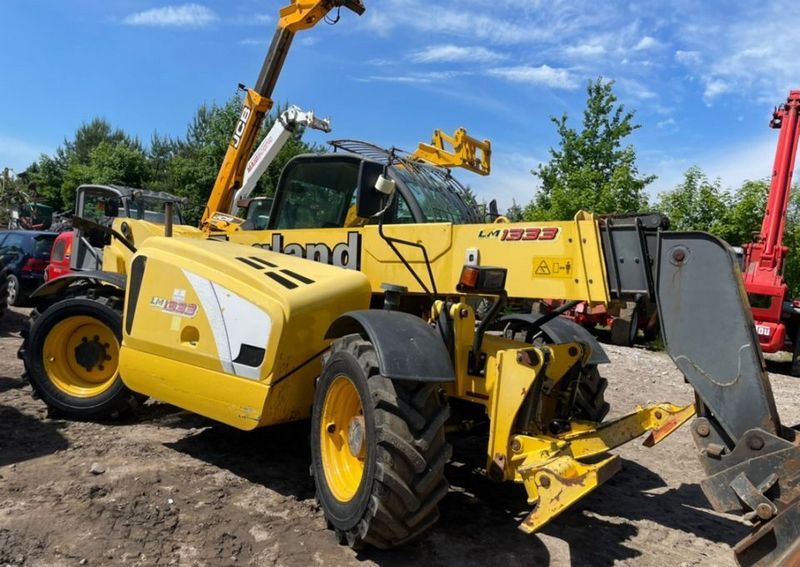

New Holland LM1333
Browse All New Holland or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 19.36 ft in (5900 mm) |
| Ground Clearance | 15.36 ft in (390 mm) |
| Width Over Tires | 8.03 ft in (2445 mm) |
| Overall Height | 8.04 ft in (2450 mm) |
| Wheelbase | 10.24 ft in (3120 mm) |
Lift
| Max Lift Height | 42.66 ft in (13000 mm) |
| Max Forward Reach | 28.71 ft in (8750 mm) |
| Max Load At Max Reach | 2755.78 lb (1250 kg) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Lift Capacity | 7275.26 lb (3300 kg) |
Engine
| Engine Model | CNH - 4TC 4.5* |
| Net Power | 97 hp (72.4 kw) |
| Max Torque | 295.1 lb ft (400 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 274.7 cu in (4.5 L) |
Operational
| Operating Weight | 21825.8 lb (9900 kg) |
| Fuel Capacity | 35.7 gal (135 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Tire Size | 15.5 x 22.5 |
Transmission
| Transmission Type | PowerShift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.2 mph (34 km/h) |
Hydraulic
| Pump Type | Load Sensing |
| Pump Flow Capacity | 30.4 gal/min (115 L/min) |
| Relief Valve Pressure | 3481 psi (24000 kPa) |
