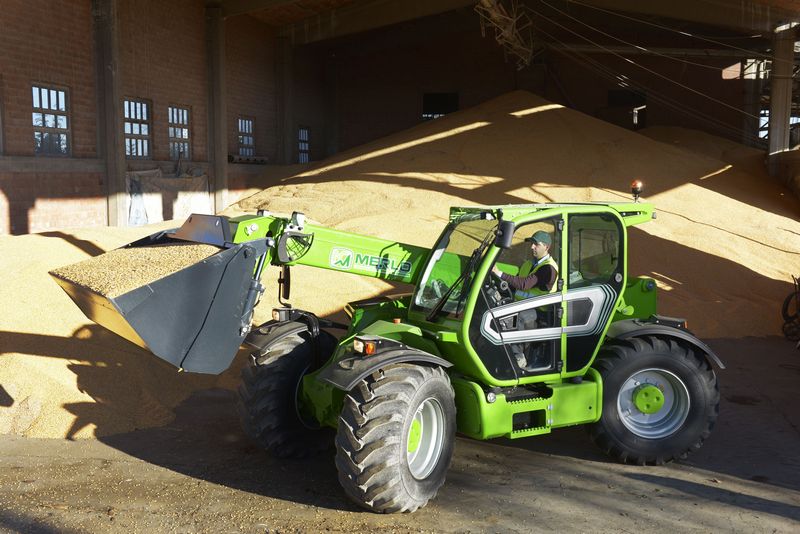

Merlo TF 50.8 T CS-156 CVT
Browse All Merlo or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 15.87 ft in (4835 mm) |
| Ground Clearance | 1.48 ft in (450 mm) |
| Width Over Tires | 7.75 ft in (2360 mm) |
| Overall Height | 8.49 ft in (2585 mm) |
| Wheelbase | 9.59 ft in (2920 mm) |
| Turning Radius Outside Tires | 13.39 ft in (4080 mm) |
Lift
| Max Lift Height | 25.6 ft in (7800 mm) |
| Total Unladen Mass With Forks | 20613.23 lb (9350 kg) |
| Max Lift Capacity | 11023.12 lb (5000 kg) |
Engine
| Emissions Level | Tier 4 |
| Number Of Cylinders | 4 |
| Gross Power | 115 hp (85.8 kw) |
| Displacement | 250.2 cu in (4.1 L) |
Operational
| Gearbox | CVTronic |
Transmission
| Max Speed - Forward | 24.9 mph (40 km/h) |
