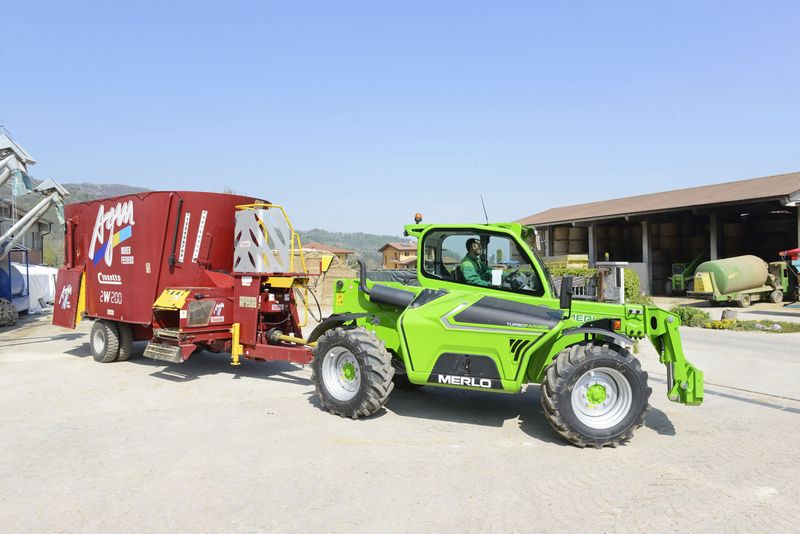

Merlo TF 38.7 TT CS120
Browse All Merlo or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 14.73 ft in (4487 mm) |
| Ground Clearance | 1.51 ft in (460 mm) |
| Width Over Tires | 7.39 ft in (2250 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Turning Radius Outside Tires | 13.08 ft in (3985 mm) |
Lift
| Max Lift Height | 23.3 ft in (7100 mm) |
| Total Unladen Mass Without Forks | 17416.52 lb (7900 kg) |
| Max Lift Capacity | 8377.57 lb (3800 kg) |
Engine
| Number Of Cylinders | 4 |
| Gross Power | 122 hp (91 kw) |
| Displacement | 219.7 cu in (3.6 L) |
Operational
| Gearbox | 2 speeds |
Transmission
| Max Speed - Forward | 24.9 mph (40 km/h) |
