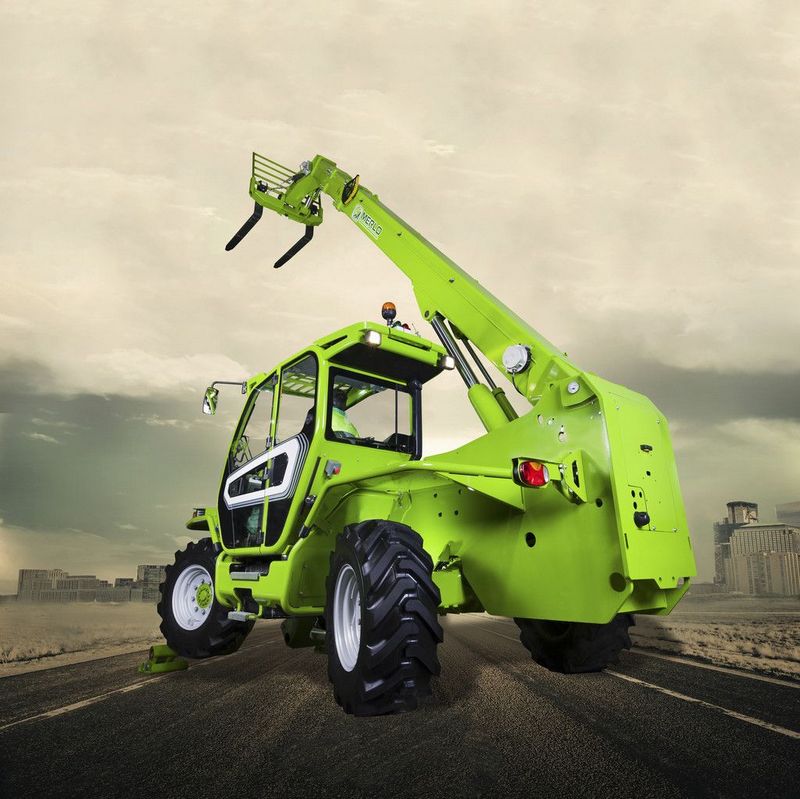

Merlo P 40.14
Browse All Merlo or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 19.33 ft in (5890 mm) |
| Ground Clearance | 1.58 ft in (480 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Overall Height | 8.24 ft in (2510 mm) |
| Wheelbase | 9.44 ft in (2875 mm) |
| Turning Radius Outside Tires | 13.29 ft in (4050 mm) |
Lift
| Max Lift Height | 45.94 ft in (14000 mm) |
| Max Forward Reach | 31.17 ft in (9500 mm) |
| Max Load At Max Reach | 2204.63 lb (1000 kg) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Lift Capacity | 8818.49 lb (4000 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Gross Power | 100 hp (74.5 kw) |
| Power Measured @ | 2400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 21825.8 lb (9900 kg) |
| Fuel Capacity | 39.7 gal (150 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 405/70-24 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
Hydraulic
| Pump Type | load sensing |
| Pump Flow Capacity | 28.6 gal/min (108 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
