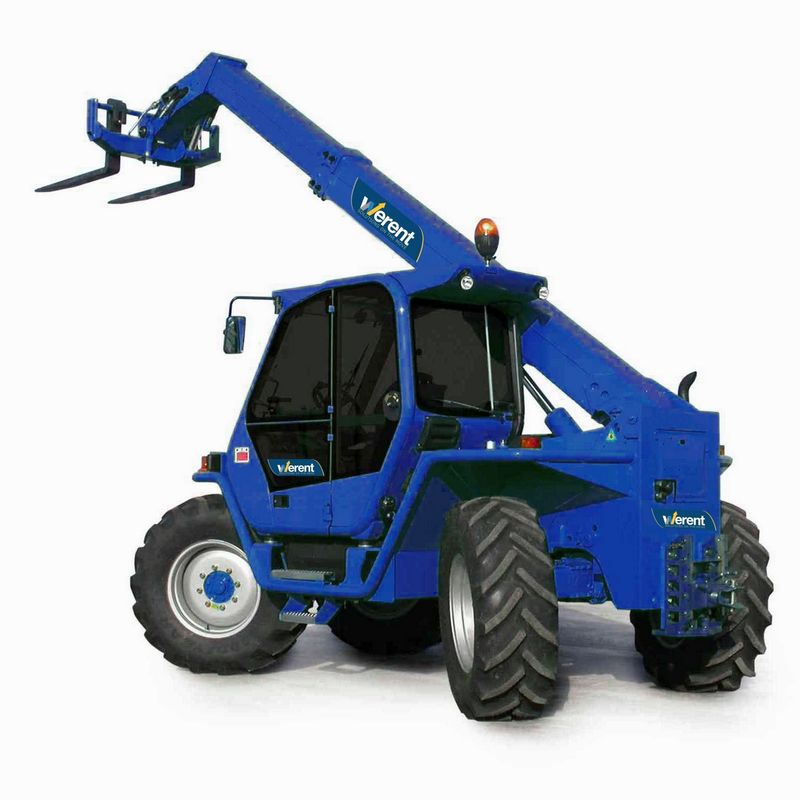

Merlo P 34.10
Browse All Merlo or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 14.24 ft in (4340 mm) |
| Ground Clearance | 1.86 ft in (565 mm) |
| Width Over Tires | 7.32 ft in (2230 mm) |
| Overall Height | 8.13 ft in (2475 mm) |
| Wheelbase | 8.86 ft in (2700 mm) |
| Turning Radius Outside Tires | 13.08 ft in (3985 mm) |
Lift
| Max Lift Height | 31.83 ft in (9700 mm) |
| Max Forward Reach | 20.35 ft in (6200 mm) |
| Max Load At Max Reach | 1322.78 lb (600 kg) |
| Max Load At Max Height | 2645.55 lb (1200 kg) |
| Max Lift Capacity | 7495.72 lb (3400 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Gross Power | 100.5 hp (74.9 kw) |
| Power Measured @ | 2400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 15983.6 lb (7250 kg) |
| Fuel Capacity | 41 gal (155 L) |
| Hydraulic System Fluid Capacity | 27.8 gal (105 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 405/70-24 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 26.5 gal/min (100 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
