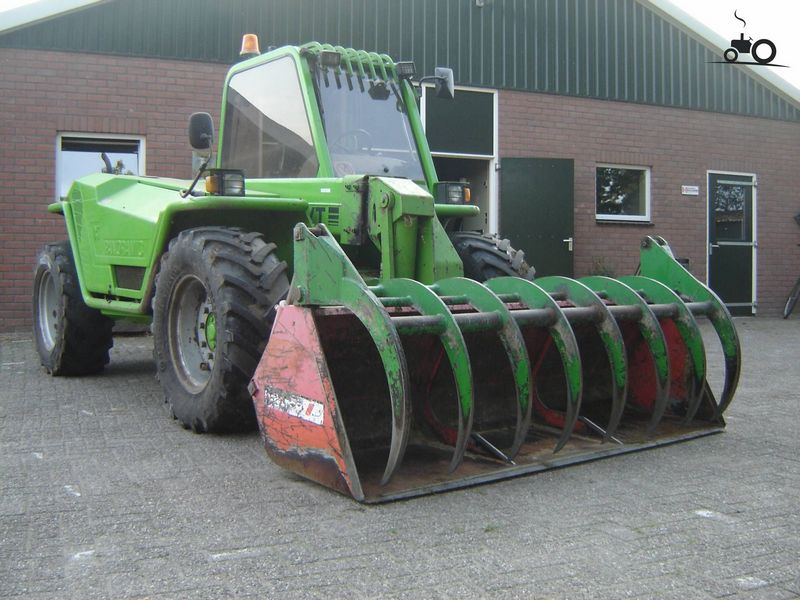

Merlo P 32.6 Top
Browse All Merlo or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 13.85 ft in (4220 mm) |
| Ground Clearance | 1.27 ft in (385 mm) |
| Width Over Tires | 6.57 ft in (2000 mm) |
| Overall Height | 7.06 ft in (2150 mm) |
| Wheelbase | 8.93 ft in (2720 mm) |
| Turning Radius Outside Tires | 12.14 ft in (3700 mm) |
Lift
| Max Lift Height | 21 ft in (6400 mm) |
| Max Forward Reach | 11.16 ft in (3400 mm) |
| Total Unladen Mass With Forks | 13558.43 lb (6150 kg) |
| Max Load At Max Reach | 2755.78 lb (1250 kg) |
| Max Load At Max Height | 5732.02 lb (2600 kg) |
| Max Lift Capacity | 7054.8 lb (3200 kg) |
Engine
| Emission Tier Level | Tier 4 Interim |
| Number Of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | BF4M2012 |
| Gross Power | 100 hp (74.5 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 244.1 cu in (4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 13139.6 lb (5960 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 22.5 gal (85 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 405/70-20 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed - Reverse | 24.9 mph (40 km/h) |
Hydraulic
| Pump Type | load-sensing pump |
| Pump Flow Capacity | 28.6 gal/min (108 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
