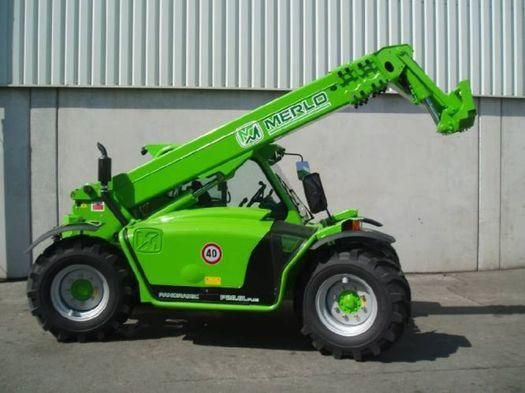

Merlo P 28.8 L
Browse All Merlo or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 13.95 ft in (4250 mm) |
| Ground Clearance | 1.27 ft in (385 mm) |
| Width Over Tires | 6.57 ft in (2000 mm) |
| Overall Height | 6.57 ft in (2000 mm) |
| Wheelbase | 8.93 ft in (2720 mm) |
| Turning Radius Outside Tires | 12.14 ft in (3700 mm) |
Lift
| Max Lift Height | 26.91 ft in (8200 mm) |
| Max Forward Reach | 17.39 ft in (5300 mm) |
| Max Load At Max Reach | 1322.78 lb (600 kg) |
| Max Load At Max Height | 2645.55 lb (1200 kg) |
| Max Lift Capacity | 6172.95 lb (2800 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4M2012 |
| Gross Power | 100.5 hp (74.9 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 244.1 cu in (4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 13316 lb (6040 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 22.5 gal (85 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 405/70-20 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | Gear pump |
| Pump Flow Capacity | 26.5 gal/min (100 L/min) |
| Relief Valve Pressure | 3045.8 psi (21000 kPa) |
