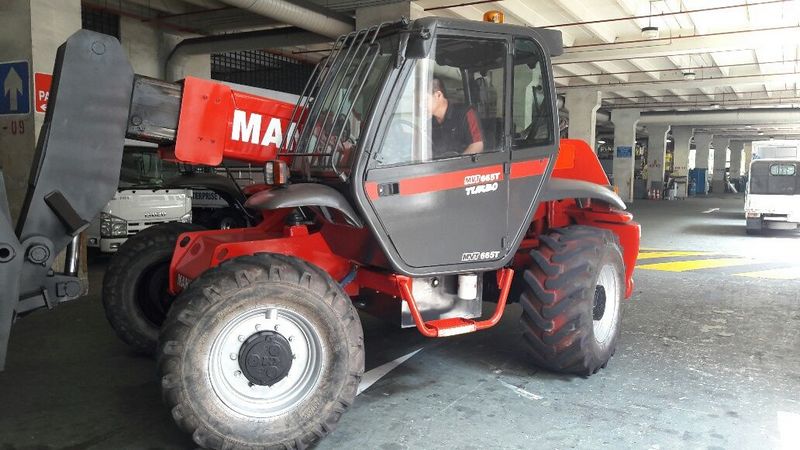

Manitou MVT 665 T
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 15.33 ft in (4670 mm) |
| Ground Clearance | 19.3 ft in (490 mm) |
| Width Over Tires | 8.01 ft in (2440 mm) |
| Overall Height | 8.24 ft in (2510 mm) |
| Wheelbase | 8.21 ft in (2500 mm) |
| Turning Radius Outside Tires | 11.7 ft in (3565 mm) |
Lift
| Max Lift Height | 19.69 ft in (6000 mm) |
| Max Forward Reach | 12.24 ft in (3730 mm) |
| Max Load At Max Reach | 4850.17 lb (2200 kg) |
| Max Load At Max Height | 11023.12 lb (5000 kg) |
| Max Lift Capacity | 14330.05 lb (6500 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1004.4 Turbo |
| Gross Power | 104.6 hp (78 kw) |
| Displacement | 243.5 cu in (4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 25132.7 lb (11400 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 29.1 gal (110 L) |
| Drawbar Pull | 22720.9 lb (10306 kg) |
| Tire Size | 18-22.5 T35 16 PR TL |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
| Relief Valve Pressure | 3988.6 psi (27500 kPa) |
