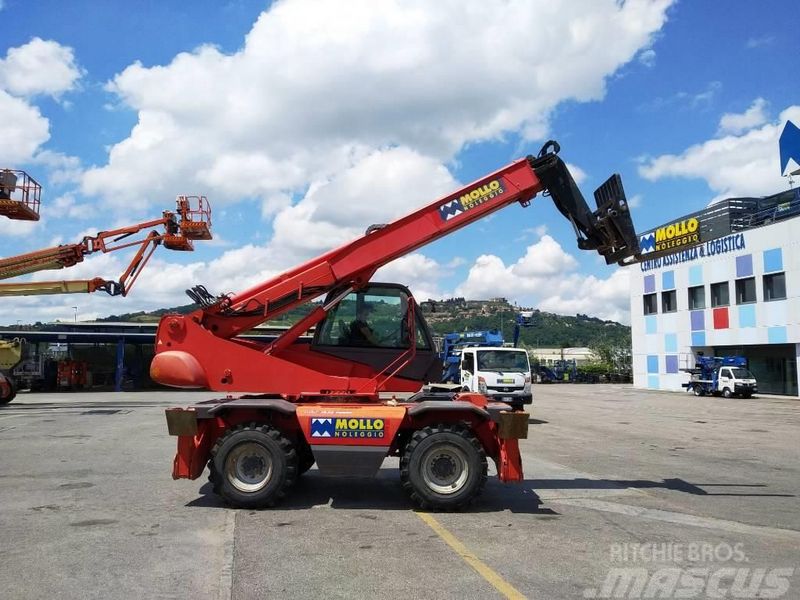

Manitou MRT 1635
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 19.94 ft in (6075 mm) |
| Ground Clearance | 13.39 ft in (340 mm) |
| Width Over Tires | 7.85 ft in (2390 mm) |
| Overall Height | 9.75 ft in (2970 mm) |
| Wheelbase | 7.62 ft in (2320 mm) |
| Turning Radius Outside Tires | 11.19 ft in (3410 mm) |
Lift
| Max Lift Height | 51.91 ft in (15820 mm) |
| Max Forward Reach | 43.31 ft in (13200 mm) |
| Max Load At Max Reach | 1102.32 lb (500 kg) |
| Max Load At Max Height | 4850.17 lb (2200 kg) |
| Max Lift Capacity | 7716.18 lb (3500 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C.44T |
| Gross Power | 100 hp (74.5 kw) |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight | 28560.9 lb (12955 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Hydraulic System Fluid Capacity | 37 gal (140 L) |
| Drawbar Pull | 22271.1 lb (10102 kg) |
| Tire Size | 400/70-20 14PR |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | 2 gear type pumps |
| Pump Flow Capacity | 30.4 gal/min (115 L/min) |
| Relief Valve Pressure | 3916.1 psi (27000 kPa) |
