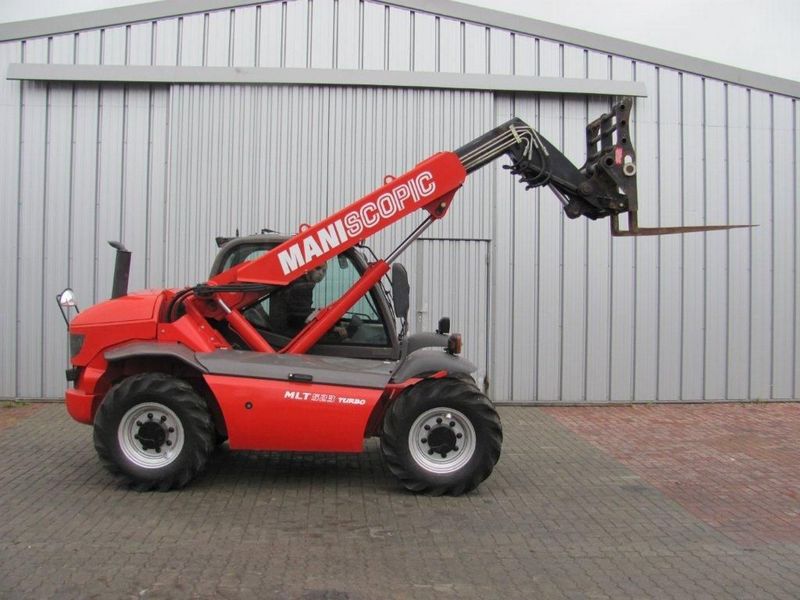

Manitou MLT 523 T
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 13.8 ft in (4205 mm) |
| Ground Clearance | 12.01 ft in (305 mm) |
| Width Over Tires | 5.94 ft in (1810 mm) |
| Overall Height | 7.55 ft in (2300 mm) |
| Wheelbase | 7.32 ft in (2230 mm) |
| Turning Radius Outside Tires | 10.13 ft in (3085 mm) |
Lift
| Max Lift Height | 16.31 ft in (4970 mm) |
| Max Forward Reach | 9.26 ft in (2820 mm) |
| Max Load At Max Reach | 2535.32 lb (1150 kg) |
| Max Load At Max Height | 5070.64 lb (2300 kg) |
| Max Lift Capacity | 5070.64 lb (2300 kg) |
Engine
| Number Of Cylinders | 3 |
| Engine Model | Oerjubs 1193C-33 Turbo 3 |
| Gross Power | 73.8 hp (55 kw) |
| Max Torque | 214.7 lb ft (291 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 201.4 cu in (3.3 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 11424.4 lb (5182 kg) |
| Fuel Capacity | 24.9 gal (94 L) |
| Drawbar Pull | 7648.8 lb (3469.4 kg) |
| Tire Size | 12.5-80-18 SGI |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 1 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 17 mph (27.4 km/h) |
| Max Speed - Reverse | 17 mph (27.4 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 23.8 gal/min (90 L/min) |
