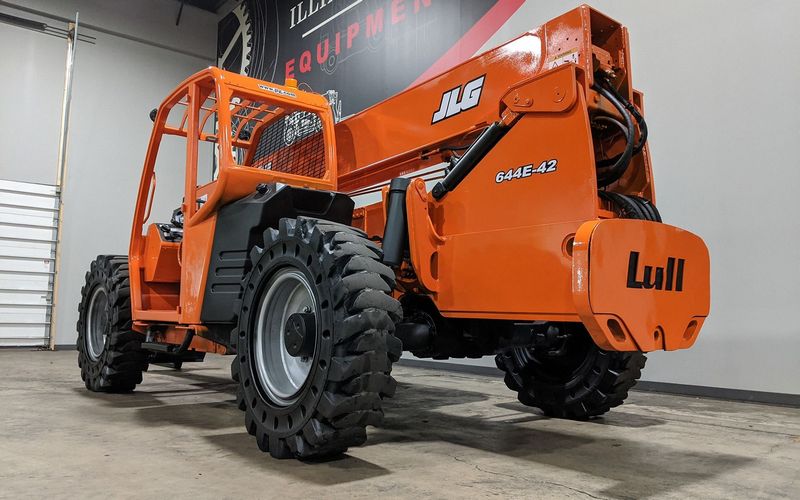

Lull 644E42
Browse All Lull or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 21.4 ft in (6520 mm) |
| Ground Clearance | 15.99 ft in (406 mm) |
| Width Over Tires | 8.14 ft in (2480 mm) |
| Overall Height | 7.98 ft in (2430 mm) |
| Wheelbase | 10.9 ft in (3320 mm) |
| Turning Radius Outside Tires | 1.24 ft in (375 mm) |
Lift
| Max Lift Height | 42 ft in (12800 mm) |
| Max Forward Reach | 35.44 ft in (10800 mm) |
| Max Load At Max Reach | 1500 lb (680.39 kg) |
| Max Load At Max Height | 6000 lb (2721.56 kg) |
| Max Lift Capacity | 6000 lb (2721.56 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | B4.5T Turbo |
| Gross Power | 99.3 hp (74 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 305.4 lb ft (414 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 884.9 cu in (14.5 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 23470.5 lb (10646 kg) |
| Fuel Capacity | 46 gal (174 L) |
| Hydraulic System Fluid Capacity | 50.2 gal (190 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Drawbar Pull | 18600.5 lb (8437 kg) |
| Tire Size | 13.00x24 |
Transmission
| Transmission Type | modulated powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
Hydraulic
| Pump Type | load sensing dual gear |
