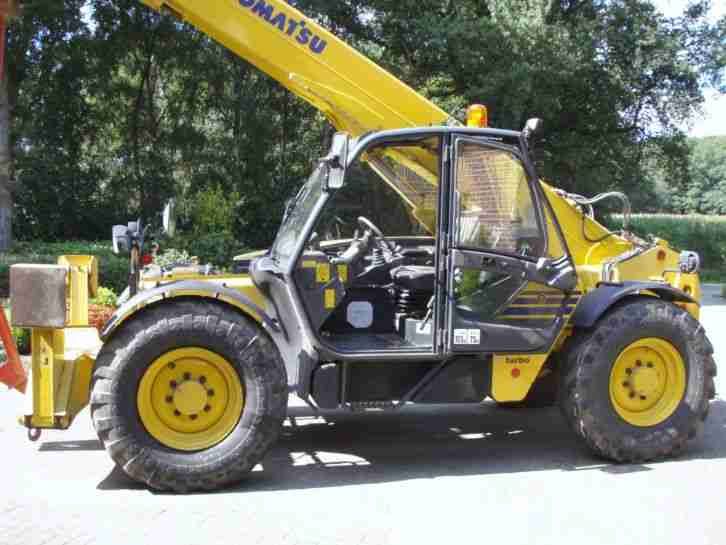

Komatsu WH714
Browse All Komatsu or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.25 ft in (6170 mm) |
| Ground Clearance | 15.95 ft in (405 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Overall Height | 8.04 ft in (2450 mm) |
| Wheelbase | 11 ft in (3350 mm) |
| Turning Radius Outside Tires | 12.21 ft in (3720 mm) |
Lift
| Max Lift Height | 46.26 ft in (14100 mm) |
| Max Forward Reach | 31.5 ft in (9600 mm) |
| Max Load At Max Reach | 2866.01 lb (1300 kg) |
| Max Load At Max Height | 8818.5 lb (4000 kg) |
| Max Lift Capacity | 8818.5 lb (4000 kg) |
Engine
| Engine Make | 2238 |
| Engine Model | S4D104E-1 |
| Net Power | 99.2 hp (74 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 293.6 lb ft (398 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 273.7 cu in (4.5 L) |
| Aspiration | Turbo |
Operational
| Operating Weight | 23413.1 lb (10620 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Hydraulic System Fluid Capacity | 33.1 gal (125 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Drawbar Pull | 19404 lb (8801.6 kg) |
| Tire Size | 14.00 -24 PR16 |
Transmission
| Transmission Type | Full power shift |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | Closed Load Sensing System |
| Pump Flow Capacity | 37.6 gal/min (142 L/min) |
| Relief Valve Pressure | 3771 psi (26000 kPa) |
