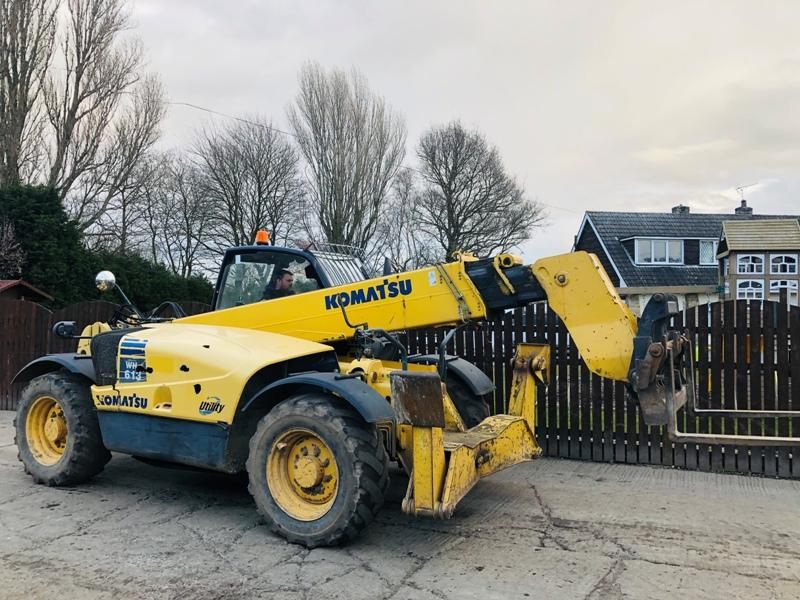

Komatsu WH613
Browse All Komatsu or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 18.71 ft in (5700 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Width Over Tires | 7.78 ft in (2370 mm) |
| Overall Height | 7.85 ft in (2390 mm) |
| Wheelbase | 9.91 ft in (3020 mm) |
| Turning Radius Outside Tires | 11.85 ft in (3610 mm) |
Lift
| Max Lift Height | 41.67 ft in (12700 mm) |
| Max Forward Reach | 28.88 ft in (8800 mm) |
| Max Load At Max Reach | 2711.69 lb (1230 kg) |
| Max Load At Max Height | 7716.18 lb (3500 kg) |
| Max Lift Capacity | 7716.18 lb (3500 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SAA4D104E-2 |
| Net Power | 99.3 hp (74 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 309.8 lb ft (420 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 273.7 cu in (4.5 L) |
| Aspiration | Turbo-intercooled |
Operational
| Operating Weight | 21605.4 lb (9800 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Hydraulic System Fluid Capacity | 28.3 gal (107 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 405/70-24 PR14 |
Transmission
| Transmission Type | Full power shift |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | piston,variable displacement, closed Load Sensing System |
| Pump Flow Capacity | 37.6 gal/min (142 L/min) |
| Relief Valve Pressure | 3771 psi (26000 kPa) |
