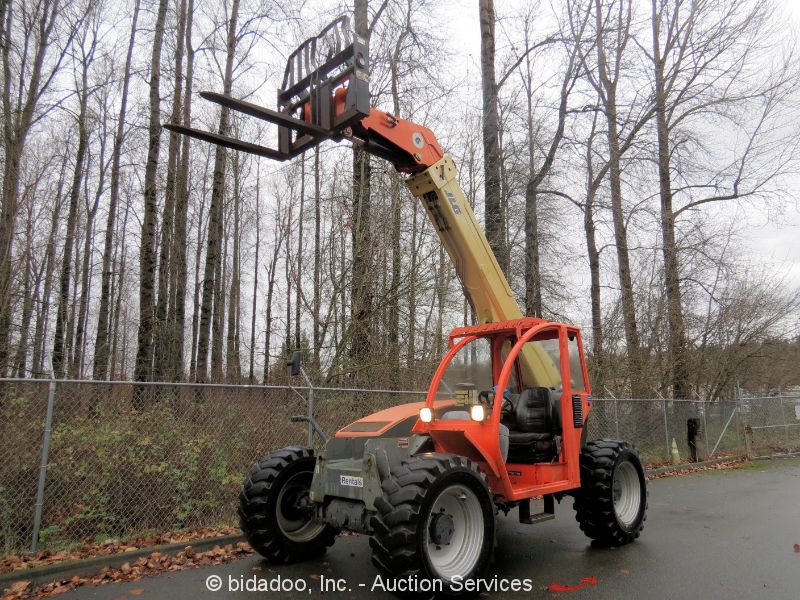

JLG G6-23A
Browse All JLG or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 13.59 ft in (4140 mm) |
| Ground Clearance | 17.33 ft in (440 mm) |
| Width Over Tires | 7.55 ft in (2300 mm) |
| Overall Height | 7.71 ft in (2350 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Turning Radius Outside Tires | 14.41 ft in (4390 mm) |
Lift
| Max Lift Height | 22.58 ft in (6880 mm) |
| Max Forward Reach | 12.77 ft in (3890 mm) |
| Max Load At Max Reach | 2500 lb (1133.99 kg) |
| Max Load At Max Height | 5600 lb (2540.12 kg) |
| Max Lift Capacity | 6600 lb (2993.71 kg) |
Engine
| Engine Make | 2349 |
| Engine Model | 2012 |
| Gross Power | 100.5 hp (74.9 kw) |
Operational
| Operating Weight | 15895.4 lb (7210 kg) |
| Fuel Capacity | 27 gal (102 L) |
| Hydraulic System Fluid Capacity | 23 gal (87 L) |
| Tire Size | 405/70-24 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 19.9 mph (32 km/h) |
Hydraulic
| Pump Type | gear |
| Pump Flow Capacity | 22.2 gal/min (84 L/min) |
