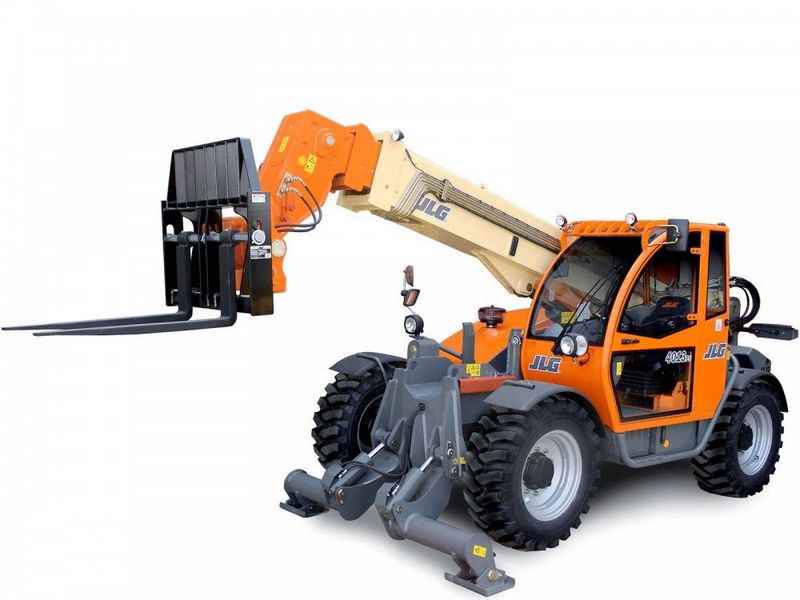

JLG 3513
Browse All JLG or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 15.1 ft in (4600 mm) |
| Ground Clearance | 16.54 ft in (420 mm) |
| Width Over Tires | 7.81 ft in (2380 mm) |
| Overall Height | 8.04 ft in (2450 mm) |
| Wheelbase | 9.36 ft in (2850 mm) |
| Turning Radius Outside Tires | 12.47 ft in (3800 mm) |
Lift
| Max Lift Height | 42.66 ft in (13000 mm) |
| Max Forward Reach | 30.19 ft in (9200 mm) |
| Max Load At Max Reach | 2204.63 lb (1000 kg) |
| Max Load At Max Height | 7716.18 lb (3500 kg) |
| Max Lift Capacity | 7716.18 lb (3500 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | Diesel 1104.44 |
| Gross Power | 80.5 hp (60 kw) |
Operational
| Operating Weight | 24250.9 lb (11000 kg) |
| Fuel Capacity | 37 gal (140 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Tire Size | 405/70-24 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic
| Pump Type | load sensing piston |
| Pump Flow Capacity | 34.9 gal/min (132 L/min) |
