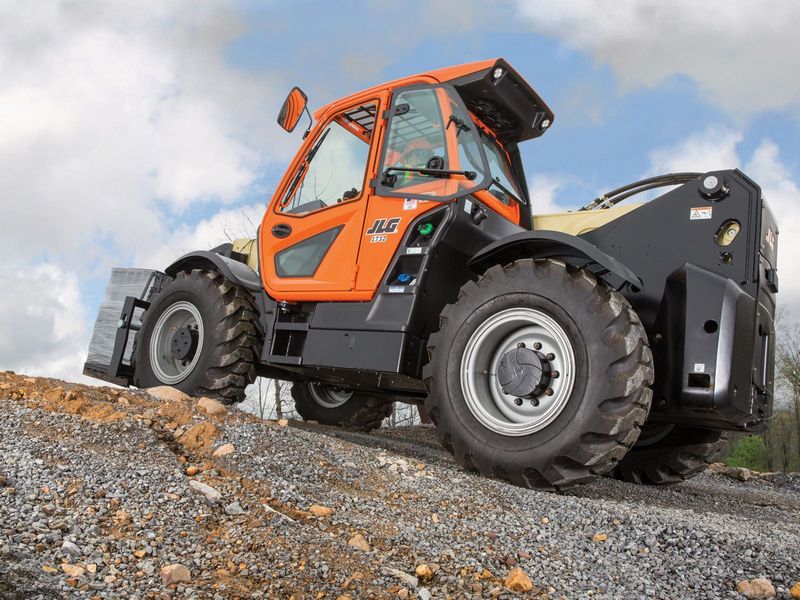

JLG 1732 HIGH CAPACITY MODEL
Contents:
| Ground Clearance | 1.7 ft in (518.16 mm) |
| Overall Height | 8.9 ft in (2712.72 mm) |
| Wheelbase | 10.7 ft in (3261.36 mm) |
| Width | 8.1 ft in (2468.88 mm) |
| Overall Length | 19.5 ft in (5943.6 mm) |
| Max Lift Height | 31.8 ft in (9692.64 mm) |
| Max Load At Max Reach | 5500 lb (2494.76 kg) |
| Load Center | 2 ft in (0.61 m) |
| Max Lift Capacity | 16755 lb (7599.95 kg) |
| Max Load At Max Height | 9900 lb (4490.57 kg) |
| Engine Model | TCD3.6L Tier 4 Final |
| Gross Power | 134 hp (100 kw) |
| Power Measured @ | 2200 rpm |
| Fuel Tank | 39 gal (147.7 L) |
| Drawbar Pull | 23000 lb (10432.7 kg) |
| Tire Size | 17.5-25 SGG |
| Maximum Lift | 14.1 sec |
| Maximum Lower | 10.9 sec |
| Maximum Telescope In | 10.9 sec |
| Maximum Telescope Out | 13.2 sec |
| Maximum Travel | 20 mph (32.2 km/h) |
| Transmission Type | Hydrostatic |
| Operating Weight | 31145 lb (14127.2 kg) |
| Front | High Bias, Limited Slip |
| Rear | Oscillating |
| Brakes Type | Wet Multi-Disc |
