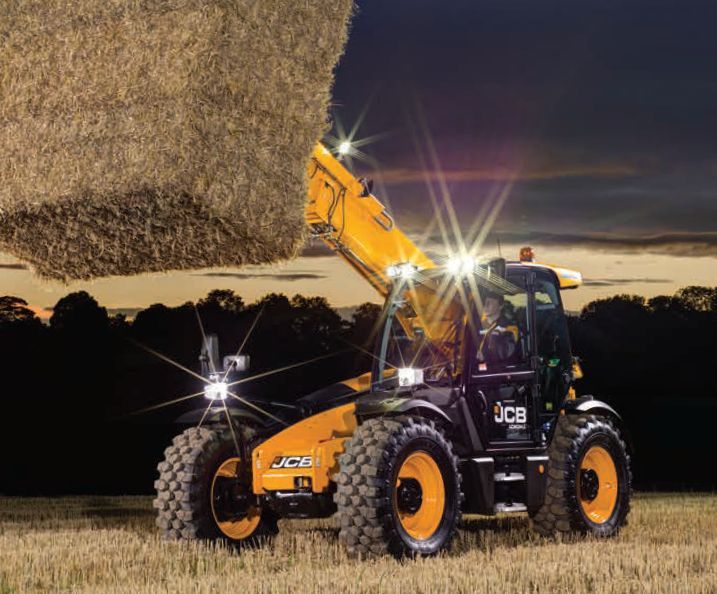

JCB 536-70LP AGRI
Browse All JCB or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Width Over Tires | 7.35 ft in (2240 mm) |
| Overall Height | 7.65 ft in (2330 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Dump Angle | 37.5 degrees |
| Lift Capacity To Full Height | 4960.41 lb (2250 kg) |
| Weight | 17813.35 lb (8080 kg) |
Lift
| Max Lift Height | 22.97 ft in (7000 mm) |
| Max Forward Reach | 12.14 ft in (3700 mm) |
| Max Lift Capacity | 7936.65 lb (3600 kg) |
Electrical System
| Battery Capacity | 220 Ah |
| Voltage | 12 V V (deletedelete) |
Engine
| Emissions Level | Tier 4 Final / Stage IV |
| Number Of Cylinders | 4 |
| Engine Make | JCB |
| Engine Model | Agri |
| Gross Power | 108.7 hp (81 kw) |
| Power Measured @ | 2200 rpm |
| Gross Torque | 324.6 lb ft (440 Nm) |
| Max Torque | 516 lb ft (699.7 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Bore | 4.1 in (103 mm) |
| Stroke | 5.2 in (132 mm) |
| Aspiration | Turbocharged cooled |
Capacities
| Fuel Tank | 38.6 gal (146 L) |
| Hydraulic Tank | 29.9 gal (113 L) |
| Diesel Exhaust Fluid (Def) Tank | 5.5 gal (20.8 L) |
| Engine Oil | 3.7 gal (14 L) |
| Engine Coolant | 6.1 gal (23 L) |
Transmission
| Lift Capacity At Full Reach | 2976.3 lb (1350 kg) |
| Travel Speed | 20.6 mph (33 km/h) |
Hydraulic System
| Bucket Crowd | 2.3 sec |
| Retract | 5 sec |
| Extend | 6.7 sec |
Hydraulic
| Pump Type | Variable |
Hydraulic System
| Raise Time | 5 sec |
| Dump Time | 2.9 sec |
| Lower Time | 5.2 sec |
