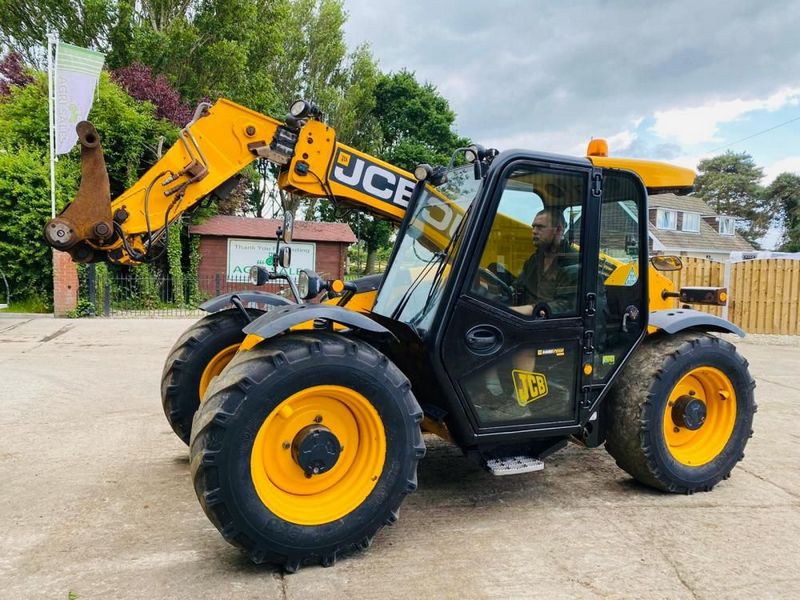

JCB 527-58 AGRI
Browse All JCB or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 1.19 ft in (360 mm) |
| Width Over Tires | 6.89 ft in (2100 mm) |
| Overall Height | 7.06 ft in (2150 mm) |
| Wheelbase | 8.57 ft in (2610 mm) |
| Dump Angle | 40 degrees |
| Lift Capacity To Full Height | 4409.25 lb (2000 kg) |
| Weight | 13007.28 lb (5900 kg) |
Lift
| Max Lift Height | 19.03 ft in (5800 mm) |
| Max Forward Reach | 9.52 ft in (2900 mm) |
| Max Lift Capacity | 5952.49 lb (2700 kg) |
Electrical System
| Battery Capacity | 95 Ah |
| Alternator | 95 amps |
| Voltage | 12 V V (deletedelete) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | JCB |
| Engine Model | Agri Plus |
| Gross Power | 108.7 hp (81 kw) |
| Power Measured @ | 2200 rpm |
| Gross Torque | 324.6 lb ft (440 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Bore | 4.1 in (103 mm) |
| Stroke | 5.2 in (132 mm) |
| Aspiration | Turbocharged cooled |
Capacities
| Fuel Tank | 19.9 gal (75 L) |
| Hydraulic System | 17.2 gal (65 L) |
Transmission
| Lift Capacity At Full Reach | 2755.8 lb (1250 kg) |
| Travel Speed | 18.7 mph (30 km/h) |
Hydraulic System
| Retract | 2.8 sec |
| Extend | 4.9 sec |
| Bucket Crowd | 2.8 sec |
| Raise Time | 4.7 sec |
| Dump Time | 2.2 sec |
| Lower Time | 3.4 sec |
